XCalibur4740 is a secure, high-performance, 6U VPX single board computer based on the Intel Xeon D-1700 series (formerly Ice Lake-D) of processors. It provides dual 40 Gigabit Ethernet ports and accommodates up to 48GB of DDR4 ECC SDRAM in three channels. It integrates SecureCOTS™ technology with a Microsemi PolarFire FPGA for hosting custom functions and supports dual XMC sites to extend functionality.

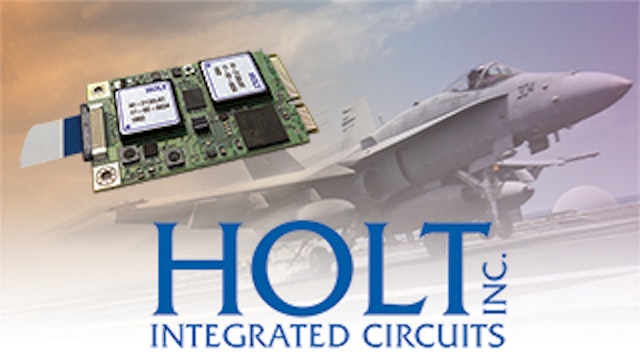

MIL-STD-1553 mini PCI-Express reference design providing a full size F2 mini PCIe Interface Card supporting one or two dual redundant MIL-STD-1553 channels. PCIe interface uses a small, cost effective Xilinx Artix-7 FPGA. Kit includes board schematic/layout, FPGA source and software drivers/API. Portable to any board design requiring PCIe. BC, MT and 1 or 2 RTs per channel with 64K Bytes ECC RAM.

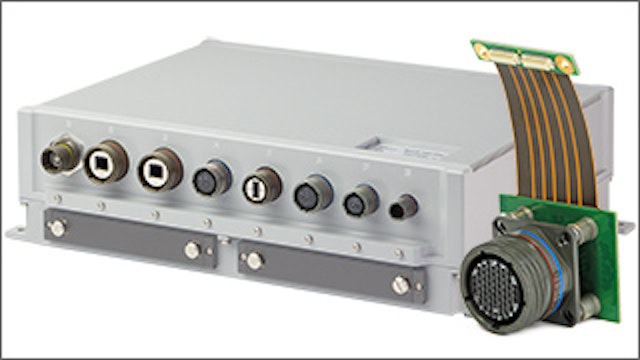

The MXCS Server comes with up to 16 Cores, 128GB ECC DDR4. Fiber connectors (up to 10 Gbit SFP+) are provided. The solution is fully conductive cooled and available in MIL IP67 housing, 19” Rack, or OpenFrame. The D38999 MIL connectors are soldered on special MPL designed rigid-flex PCBs. The server can be customized according to customer needs. Designed and produced by MPL in Switzerland.

The Model 5553 is a 8-channel A/D and D/A SOSA Aligned 3U VPX Board utilizing the Xilinx Zynq® UltraScale+ Gen 3 RFSoC FPGA pre-loaded with a suite of data capture and processing IP modules and is ideal for SIGINT, EW, Radar and 5G wireless applications.
