Rugged XMC I/O module for aerospace and defense COTS embedded computing introduced by Acromag

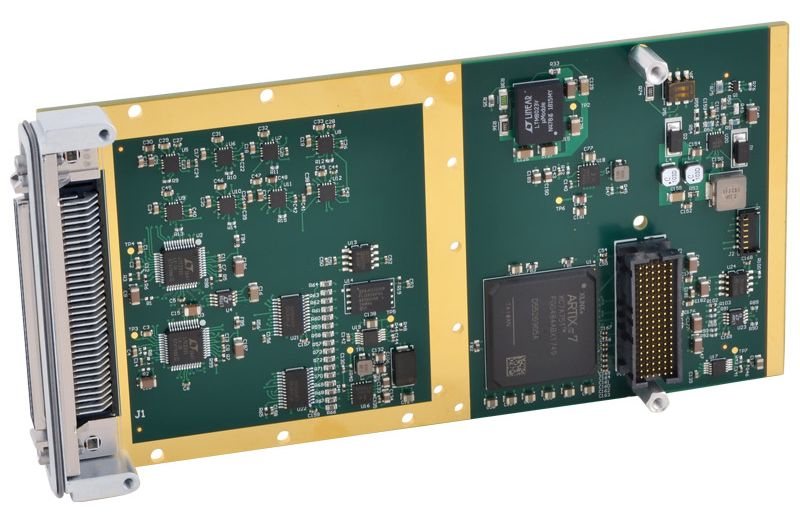

WIXOM, Mich. – Acromag in Wixom, Mich., is introducing the XMC730 XMC multi-function embedded computing I/O module for commercial off-the shelf (COTS) aerospace and defense applications.
The XMC730 performs analog input, analog output, digital I/O, and counter/timer functions with high-performance direct memory access (DMA) to solve size, weight, and power consumption (SWaP) challenges.
Three models provide front 68-pin SCSl-2 I/O connection or rear P16 and P4 I/O connectors, and perform high-speed and high resolution A/D and D/A conversion, as well as digital I/O and counter/timer functions. A conduction-cooled version is available.
The embedded computing module complies with ANSI/VITA 42.0 specification for XMC module mechanicals and connectors., complies with ANSI/VITA 42.3 for XMC modules with PCI Express interface, and conforms to PCI Express base specification, revision 2.1.
The module operates in temperatures from 0 to 70 degrees Celsius, stores in temperatures from -55 to 100 C, in humidity from 5 to 95 percent, and withstands the effects of shock per VITA 47 Class OS1.
The rugged module has DMA transfer support to move data between module memory and PCI Express bus, and has software development tools for VxWorks, Linux® and Windows environments.
For more information contact Acromag online at www.acromag.com.
