Industrial-grade memory cards with error correction for surveillance applications introduced by Swissbit

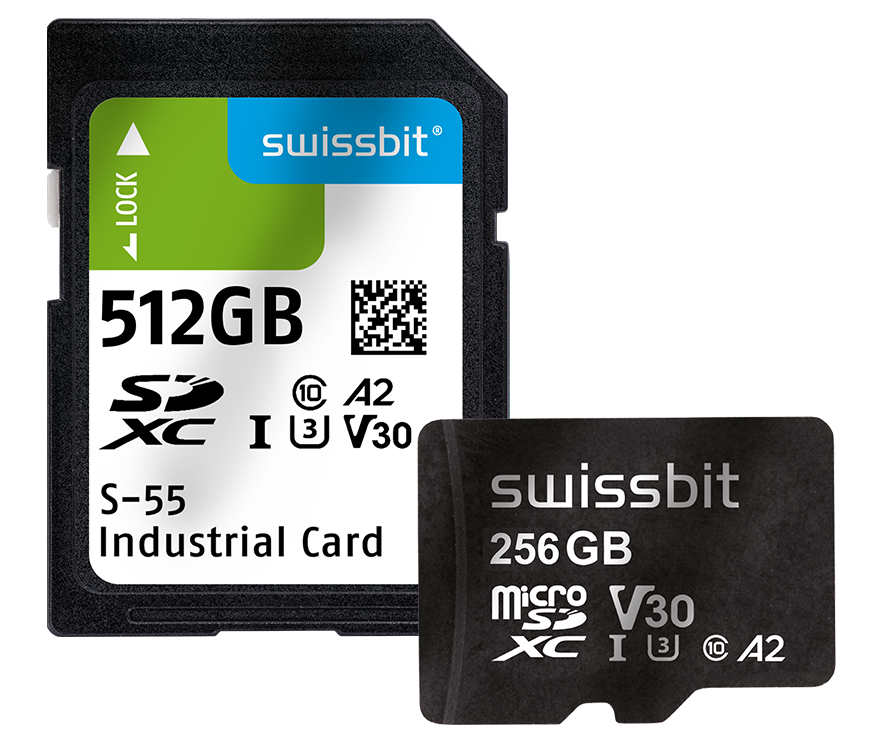

WESTFORD, Mass. – Swissbit NA Inc. in Westford, Mass., is introducing the S-55 and S-58 series industrial-grade SD and microSD memory cards for surveillance and medical applications.
The memory cards combine industrial-grade 3D TLC NAND technology with a powerful controller and firmware, and are available in capacities ranging from 16 to 512 gigabytes and support an extended temperature range of -40 to 85 degrees Celsius.
The S-55 and S-58 series are based on Micron flash chips, and are optimized to tolerate temperature fluctuations between read and write operations across the specified temperature range.
The memory cards feature 120-bit LDPC error correction, page fail protection, read disturb management, background data refresh, data recovery following a sudden power loss, and static and dynamic wear leveling.
Related: New technologies drive bulk-memory solutions
A molded SiP package with gold contacts provides optimal protection against high mechanical stress and environmental influences even in harsh environments.
The memory cards are SD-6.1 compliant and support the common SPI interface mode in embedded systems and the UHS-I interface mode. They reach UHS speed class U3 or respectively speed class 10, as well as application class A2 and video speed class V30.
The S-55 is available in capacities ranging from 64 to 512 gigabytes, with the microSD version S-55u offering between 64 and 256-gigabyte choices.
For more information contact Swissbit online at www.swissbit.com.
