OpenVPX embedded computing shelf managers that comply to VITA 46.11 introduced by Pixus
WATERLOO, Ontario, 17 Aug. 2016. Pixus Technologies in Waterloo, Ontario, is introducing embedded computing shelf managers that comply to VITA 46.11 for shelf management of OpenVPX systems. There also are configurations for use in legacy VME/64x and CompactPCI systems.

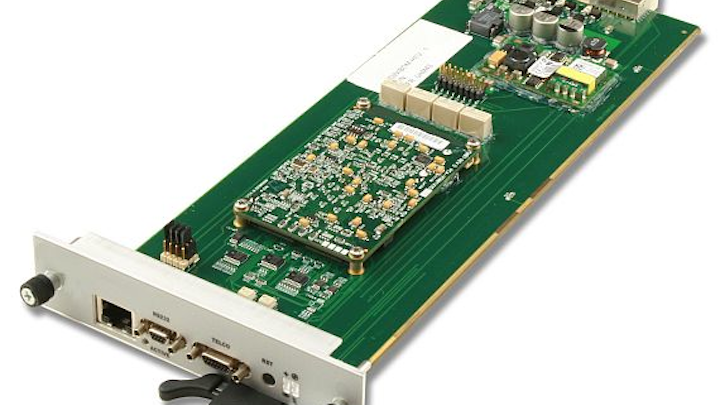

The Pixus SHM200 shelf manager is IPMI 2.0 compliant and is available in various size formats. The unit offers temperature monitoring of at least six temp sensors, monitoring of 12 fans, and eight voltage monitors. The SHM200 also has fan PWM control and as many as 16 digital inputs and outputs.
The standard panel interface on the SHM200 includes RS-232, Ethernet, and indicator LEDs. A Telco interface also is optional and customized versions are available. The standard size is 3U high by 160 millimeters deep with a 0.8-inch pitch. If the Telco interface is used the pitch is increased to 1.2 inches.
Pixus also offers shelf managers for AdvancedTCA. The company offers a wide range of OpenVPX, AdvancedTCA, and MicroTCA chassis platforms, backplanes, and system accessories.
For more information contact Pixus Technologies online at http://pixustechnologies.com.
