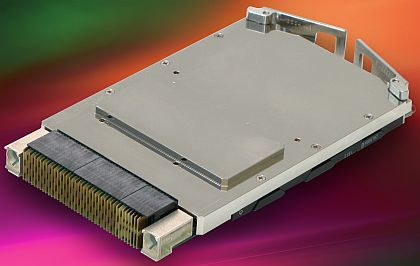

3U VPX GPGPU embedded computing board for sensor processing and C4ISR offered by Aitech

CHATSWORTH, Calif. 18 Nov. 2013. Aitech Defense Systems Inc. in Chatsworth, Calif., is introducing the C530 3U VPX general-purpose graphics processing unit (GPGPU) embedded computing computer for advanced sensor processing and applications in command, control, communications, computers, intelligence, surveillance, and reconnaissance (C4ISR).

The C530 carries industry-standard MXM modules with the ability to upgrade to newer modules as they become available, Aitech officials say. The MXM modules enable one module to function across several platforms, providing expanded graphics and teraflop processing options for each system.

The C530 GPGPU board comes with one of two MXM modules: the NVIDIA GeForce GTX 675MX at 600 MHz; 4 gigabytes of GDDR5 memory at 1800 MHz; or the AMD Radeon HD 7970M at 850 MHz; 2 gigabytes of GDDR5 memory at 1200 MHz.

The multi-format video output channels included as standard on the C530 enable the board to perform rugged signal processing and high-resolution graphics.

The C530 connects to Intel-based VPX single-board computers via a high-speed PCI Express Gen 2.0 link using to 16 lanes over the VPX backplane. "GPGPUs are for performing parallel processing and high-bandwidth image processing, serving as dedicated math co-processors for advanced digital signal processing and embedded computing subsystems," explains Doug Patterson, vice president of business development and marketing for Aitech.

The C530 GPGPU processes sensor data and situational awareness information in defense and aerospace applications, and comes in commercial and rugged air-cooled as well as conduction-cooled configurations for severe and harsh environments per VITA 46. Conduction-cooled versions comply with VPX-REDI (VITA 48.2).

For more information contact Aitech online at www.rugged.com.
