Rugged 3U VPX H.265 audio and video encoder for harsh environments introduced by EIZO
ALTAMONTE SPRINGS, Fla. – EIZO Rugged Solutions Inc. in Altamonte, Springs, Fla., is introducing the Condor VPX-H265-SDI rugged 3U VPX H.265 high efficiency video encoding (HEVC) audio and video encoder for harsh environments such as manned and unmanned airborne applications where low-latency encoding, streaming and low power consumption are essential.
The Condor VPX-H265-SDI from EIZO Rugged Solutions (formerly Tech Source Inc.) features dual 3G-SDI inputs and support for cursor on target (CoT), key length value (KLV), and vertical ancillary data (VANC) metadata insertion.

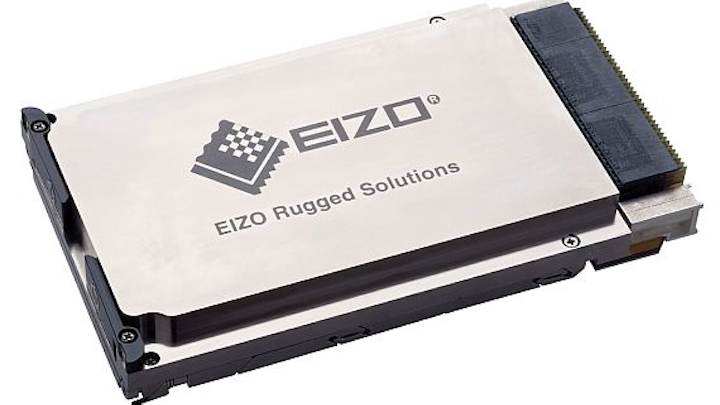

The Condor VPX-H265-SDI is a 3U VPX (1-inch pitch) H.265 (HEVC) or H.264 video encoding and streaming solution designed that encodes and streams two 3G-SDI, HD-SDI, or SD-SDI inputs simultaneously using the video coding standard H.265 (HEVC) which provides increased video quality and a 50 percent reduction in bitrate compared to H.264.
The H.265 encoding parameters are configurable with main profile support as well as variable and constant bitrate configurations (512 kilobits per second to more than 15 megabits per second).
“Our VPX customers demand the highest quality video encoding and that’s what we have delivered with our new HEVC product," says EIZO President and CEO Selwyn Henriques. "It is a mission-critical issue because every single pixel matters if the operator of the vehicle, such as a reconnaissance plane or drone, is going to accurately determine whether a target is friend or foe.”
Related: Rugged video encoder for video transmission in harsh field environments introduced by EIZO
EIZO’s Condor VPX-H265-SDI card also supports CoT and KLV metadata insertion via RS-232 or Ethernet. The card also allows vertical ancillary data (VANC) -- information such as a plane’s GPS coordinates, speed, altitude, and other closed caption data -- to be streamed efficiently in non-picture regions of the frame.
USB 3.0 with encoded data is also supported on the new VPX product for external recording to benign or rugged removable hard drives. “For airborne applications, this contextual metadata is a key requirement and without it, operators or analysts cannot make informed decisions,” Henriques says.
The Condor VPX-H265-SDI is a MIL-STD-810G-compliant card ruggedized too withstand vibration, shock, and humidity and support temperatures from -40 to 85 degrees Celsius. The card also features 1 Gigabit Ethernet output, a built-in application programming interface (API), and comes with several sample applications to help expedite the integration process.
For more information contact EIZO Rugged Solutions online at www.eizorugged.com.
