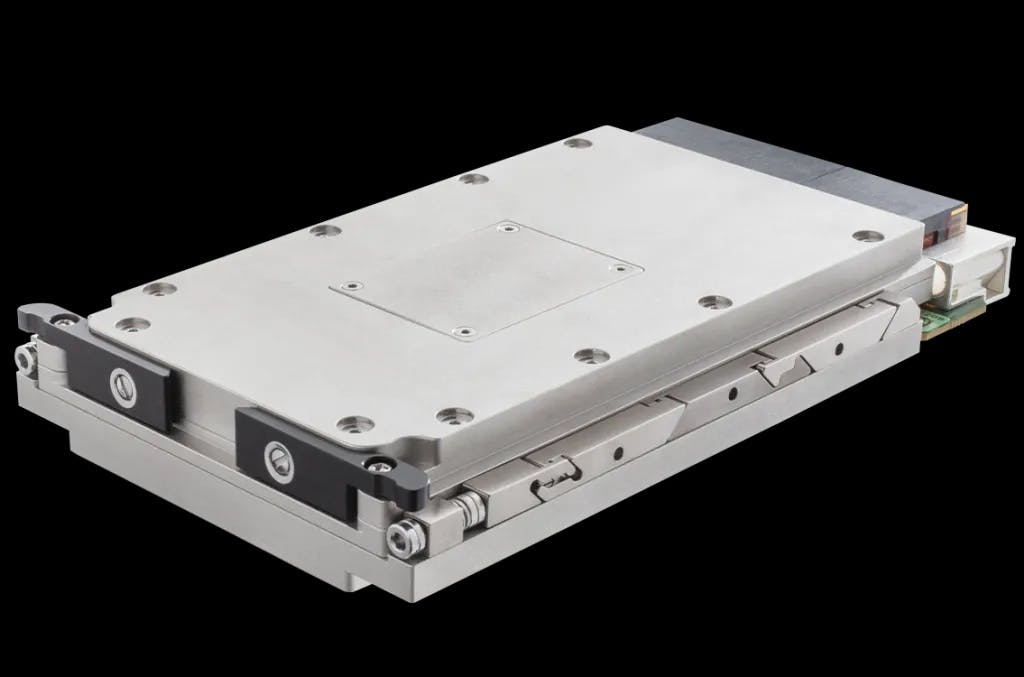

Condor AGX-IOX – I/O-Intensive 3U VPX Rugged Single Board Computer

The Condor™ AGX-IOX is a rugged 3U VPX high-performance single board computer (SBC) designed for both autonomous and embedded edge computing systems completing instantaneous data analysis and transfer, multi-sensor processing, encode/decode, and AI Inferencing. The Condor AGX-IOX is designed with the NVIDIA® Jetson AGX Orin™ SoM supporting an NVIDIA Ampere GPU and the Arm® Cortex®-A78AE CPU. This product supports 64GB LPDDR5 system memory allowing up to 205 GB/s memory bandwidth shared between the ARM Cortex CPUs, NVIDIA Ampere GPU, and Accelerator Engines.

The Condor AGX-IOX 3U VPX SBC supports advanced storage and networking capabilities, including 64GB eMMC internal storage and 10GbE (Gigabit Ethernet), and high-speed I/O such as USB 3.2, DisplayPort™, and RS-232 Serial. The card also includes dedicated HEVC (H.265)/AVC (H.264) NVENC and NVDEC engines with support for up to 4K-UHD encode resolution. The Condor AGX-IOX is designed to support both VITA 46/65 and the Sensor Open System Architecture (SOSA™) technical standards slot profile 14.2.16.
