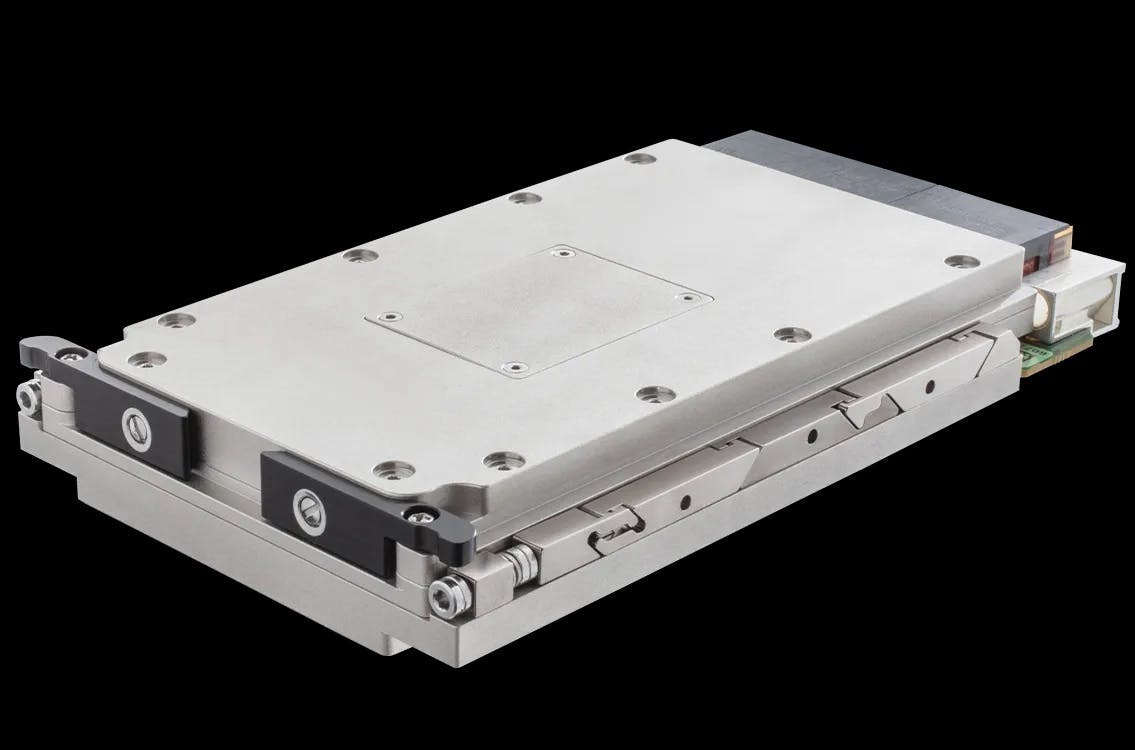

Condor AGX-ORIN64-HPC – Compute-Intensive 3U VPX Rugged Single Board Computer

The Condor™ AGX-ORIN64-HPC is a rugged 3U VPX high-performance single board computer (SBC) designed for both autonomous and embedded edge computing systems. The Condor AGX-ORIN64-HPC uses the NVIDIA Jetson AGX Orin 64GB (Industrial) SoM that hosts an NVIDIA Ampere architecture GPU and a 12-core Arm® Cortex®-A78AE CPU. The module’s 64GB of LPDDR5 system memory allows up to 205 GB/s memory bandwidth shared between the internal CPU, GPU, and accelerator engines.

The Condor AGX-ORIN64-HPC incorporates the NVIDIA ConnectX®-7 NIC, enabling high-speed data transfer of up to 100Gb/s and 25Gb/s using Gigabit Ethernet. This, along with NVIDIA GPUDirect® RDMA over converged Ethernet (RoCE), enables high-speed communication between distributed sensors, RF transceivers, and platforms. In addition, the card supports 64 GB eMMC internal storage, an M.2 2230 site for expandable storage, and features high-speed I/O such as USB 3.2, DisplayPort™, and RS-232 Serial. The NVIDIA^® Jetson AGX Orin™ SoM features HEVC (H.265)/AVC (H.264) NVENC and NVDEC engines with support for up to 4K-UHD encode resolution. The Condor AGX-ORIN64-HPC is designed to support both VITA 46/65 and the Sensor Open System Architecture (SOSA™) technical standards slot profile 14.6.11.
