    RTM-9265 & RTM-9380 VPX Rear Transition Modules

    Feb. 27, 2025
    Universal 6U or 3U VPX Rear Transition Module. Can be customized by Dawn.
    Related To: Dawn VME Products
    Image provided by Dawn VME Products

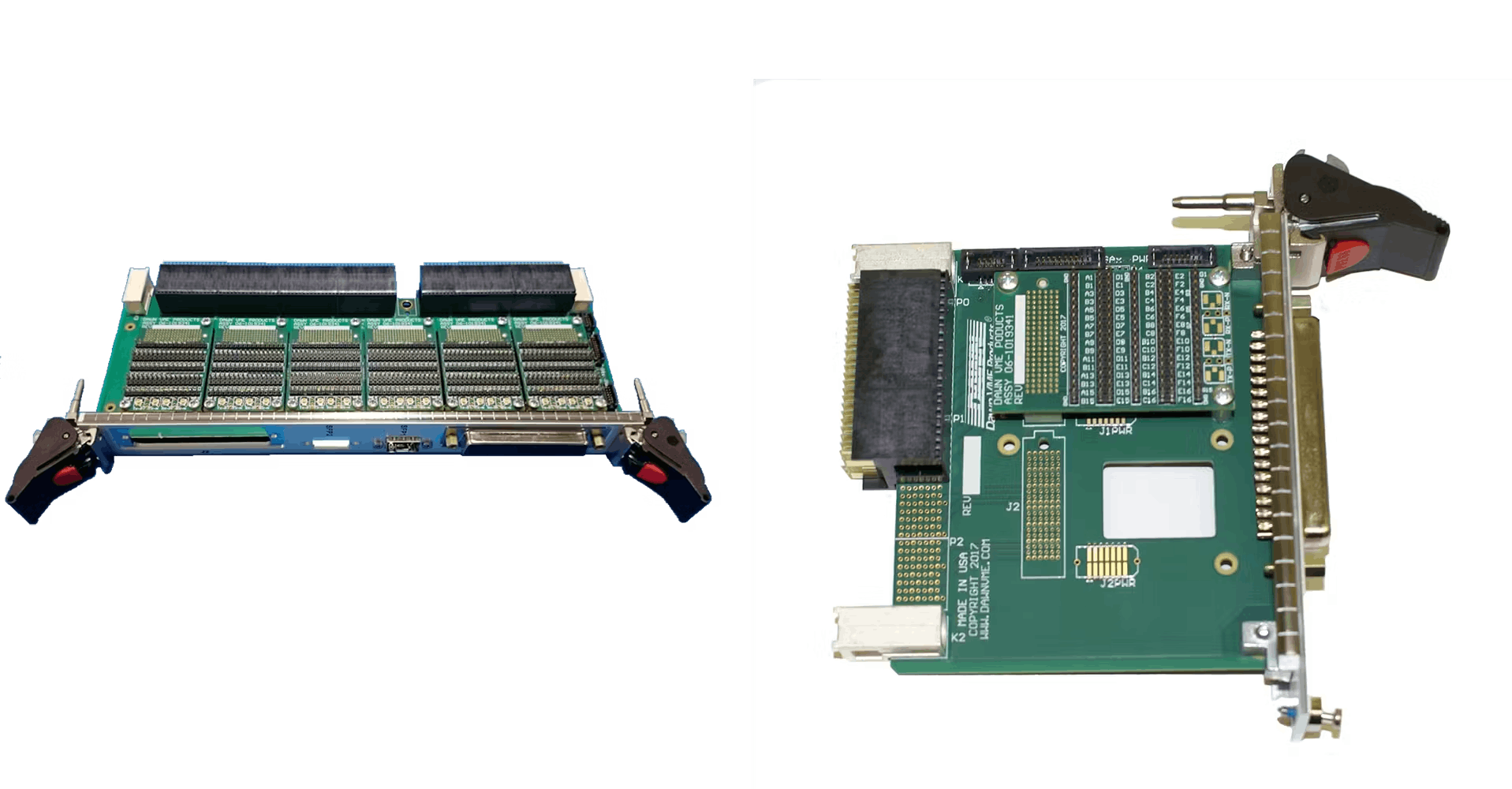

    RTM-9265 & 9380

    Universal 6U or 3U VPX Rear Transition Module.

    • 06-1019265 Universal RTM breaks out every RJ1-RJ6 connector to a high-speed Samtec connector.
    • Then Daughter cards are used to breakout individual signal lines.
    • The 06-1019341 Daughter card is for slow signals - uses 2mm headers or direct wire solder connections.
    • The 06-1019342 Daughter card is for fast signals - using Samtec differential pair coax cables.
    • These cables can be loaded for each row of the VPX connector.
    • The two large DB50 connectors have 50 pins each for slow signal break out.
    • The DB50s can be removed to have fast signals exit via Samtec cables.
    • Can be customized by Dawn for your specific connectors if needed (as long as they are available in panel mount version).
