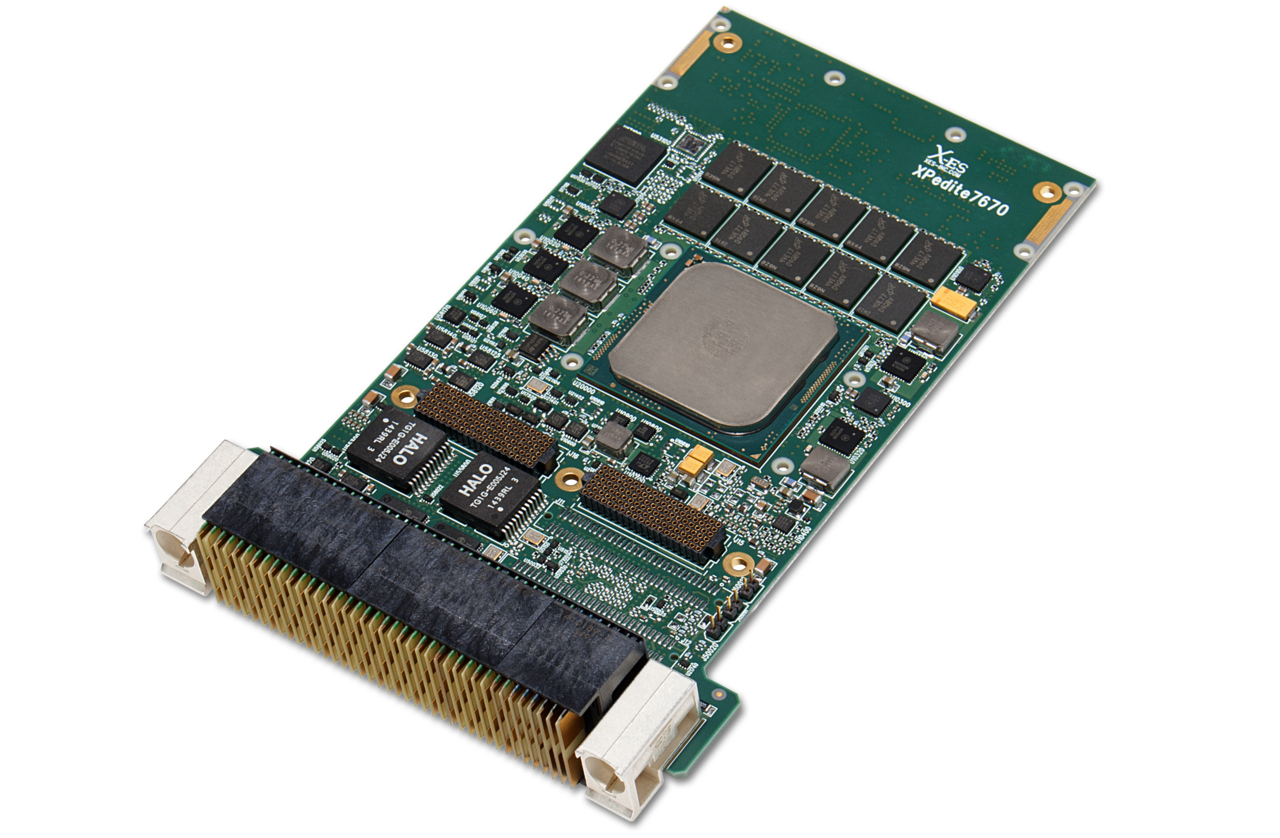

XPedite7670 | Intel® Xeon® D Processor-Based 3U VPX-REDI Module with Dual 10GbE and an XMC Site

March 9, 2015
The XPedite7670 is a high-performance, 3U VPX-REDI, single board computer based on the Intel® Xeon® D processor. The Intel® Xeon® D processor can provide up to 16 Xeon®-class cores in a single, power-efficient System-on-Chip (SoC) package. The XPedite7670 maximizes network performance with four Gigabit Ethernet interfaces which are configured as two 1000BASE-BX/KX (SerDes) ports and two 10/100/1000BASE-T ports.Up to four lanes of Gen3 PCI Express are routed to the backplane P1 connector, supporting a single x4 PCIe interface. This interface also supports Non-Transparent Bridging, enabling direct communication with other Intel® processors, and there is no need for a separate switch module in the system, further reducing SWaP-C for the system integrator.The XPedite7670 provides superior growth and expansion capabilities by including an XMC site with full 10 mm I/O envelope support, while maintaining a 0.8 in. VPX slot pitch. This gives system integrators a plethora of COTS options for additional I/O, storage, or processing.The XPedite7670 accommodates up to 16 GB of DDR4-2133 ECC SDRAM in two channels to support memory-intensive applications. The XPedite7670 also hosts numerous I/O ports, including USB, SATA, and RS-232/422/485 through the backplane connectors.Wind River VxWorks and X-ES Enterprise Linux Support Packages (XEL) are available. The XPedite7670 uses coreboot, powered by Intel®’s Firmware Support Package (FSP), to provide fast boot times and significantly simplify code traceability over legacy BIOS implementations.
