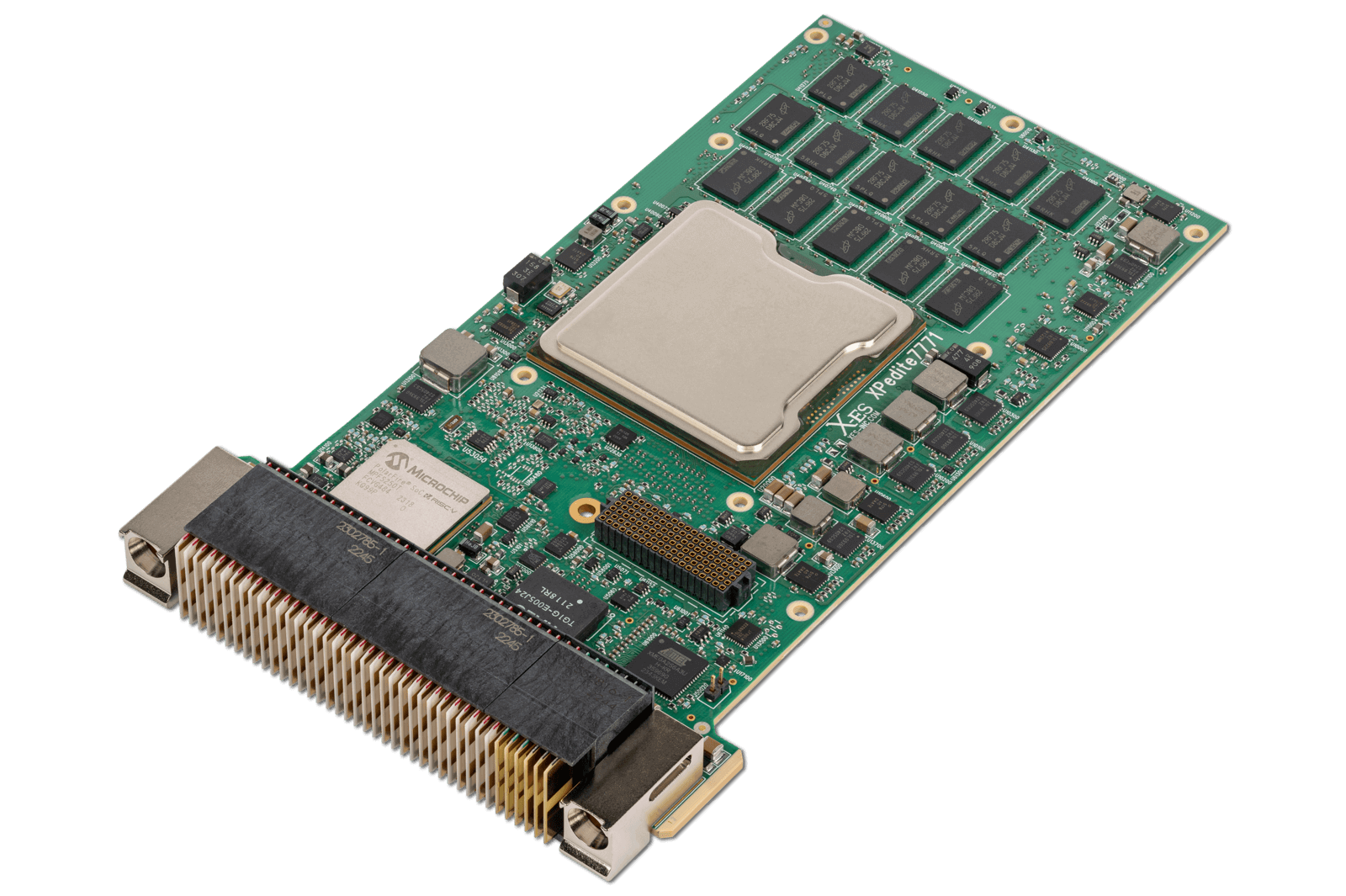

XPedite7771

The XPedite7771 is a secure, high-performance single board computer based on the Intel® Xeon® D-1700 series (formerly Ice Lake-D) of processors, making it an optimal choice for computationally heavy applications requiring maximum data and information protection.

This 3U VPX-REDI module integrates SecureCOTS™ technology with a Microsemi® PolarFire™ System-on-Chip (SoC) FPGA for hosting custom functions to protect data from being modified or observed and provides an ideal solution when stringent security capabilities are required.

The XPedite7771 provides incredible speed with two 100GBASE-KR4 and one 10/100/1000BASE-T Ethernet ports. The dual 100GBASE-KR4 Ethernet ports offer fallback redundancy to help ensure a consistent processor throughput of up to 100 Gbps is available at all times. The XPedite7771 also accommodates up to 48 GB of DDR4 ECC SDRAM in three channels and up to 32 GB of onboard SLC NAND flash in addition to numerous I/O ports, including USB 2.0, PCI Express, and RS-232/422/485 serial through the backplane connectors.

An integrated XMC site provides additional expansion capabilities, including a x8 PCI Express connection to the Intel® Xeon® D processor.

Wind River VxWorks and X-ES Enterprise Linux (XEL) Board Support Packages (BSPs) are available.

LEARN MORE

FEATURES:

• Supports Intel® Xeon® D-1700 series (formerly Ice Lake-D) processors
• Up to 10 Xeon®-class cores in a single, power-efficient SoC package
• SKUs available with native extended temperature support
• Designed with SecureCOTS™ technology to support enhanced security and trusted computing
• Microsemi® PolarFire™ SoC FPGA with 256 MB SPI flash
• 3U VPX (VITA 46) module
• Ruggedized Enhanced Design Implementation (REDI) per VITA 48
• Compatible with multiple VITA 65 OpenVPX™ slot profiles
• 48 GB of DDR4 ECC SDRAM in three channels
• 32 GB of SLC NAND flash
• XMC site with x8 PCI Express interface
• Dual 100GBASE-KR4 Ethernet ports (up to 100 Gbps aggregate processor throughput)
• One 10/100/1000BASE-T Ethernet port
• Four x4 Gen3 PCI Express interfaces
• Two USB 2.0 ports
• Two RS-232/422/485 serial ports
• RDMA over Converged Ethernet (RoCE) v2 internet layer protocol support
• Wind River VxWorks BSP
• X-ES Enterprise Linux (XEL) BSP
• Contact factory for availability of Microsoft Windows drivers and other operating systems
