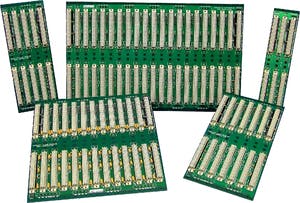

Dawn Backplanes: 6U VME Monolithic

Jan. 7, 2025
2 through 21 slots, short-tail 96-pin DIN connectors standard on J1 slots, shrouds on all J2 connectors, 8 layer stripline/microstrip design.

VME Monolithic, 2 through 21 slots, short-tail 96-pin DIN connectors standard on J1 slots, shrouds on all J2 connectors, 8-layer stripline/microstrip design.

• 6U VMEbus backplanes from 2 through 21 slots.
• Shrouds on all J2 connectors.
• 8-layer design with stripline-microstrip technology.
• Low-impedance characteristics.

• Automatic BUSGRANT/IACK jumpering standard.

• Multiple power input configurations.

• Excellent Power Distribution.

• Virtually No Crosstalk.
