    ATR-3600S - half-ATR for deployable applications aligned to SOSA

    Sept. 29, 2023
    ATR-3600S is an off-the-shelf half-ATR specifically designed for deployable applications requiring alignment with the SOSA Technical Standard.
    Related To: Elma Electronic

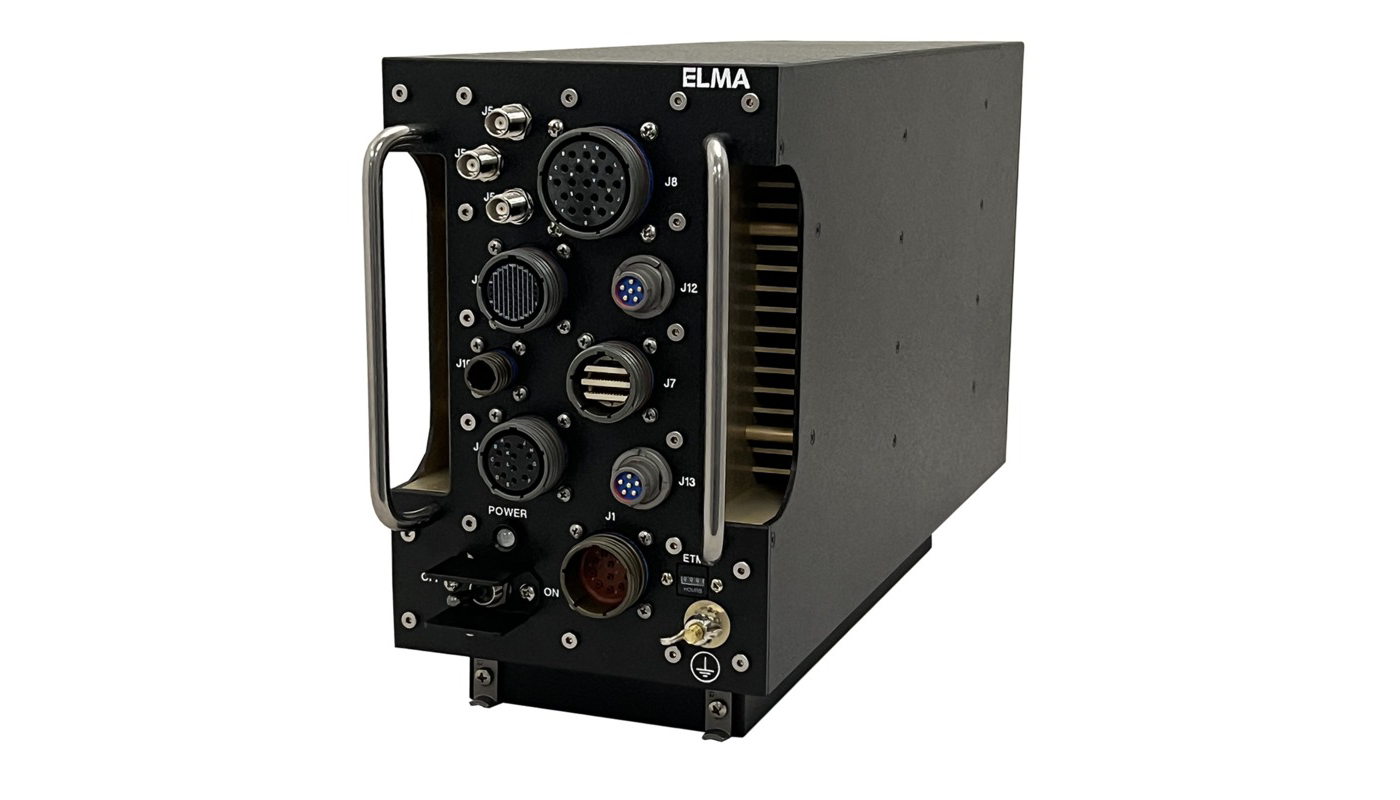

    Cap005568 Half Atr Angledright 65170057ad9f1

    ATR-3600S is an off-the-shelf half-ATR specifically designed for deployable applications requiring alignment with the SOSA Technical Standard. This six-slot chassis is mission-ready to accept SOSA aligned plug-in cards (PICs) and VITA 62 power supplies and is an ideal way to rapidly integrate a deployable platform leveraging the power of SOSA.

    Item/Part Number: ATR-3600S

    Product Features

    •  1/2 ATR, conduction-convection cooled. Advanced airflow design distributes air across external fins in sidewalls
    •  6-slot, 3U OpenVPX (VITA 65) SOSA aligned backplane, 1in pitch (1SVX306AKP-1X31)
    •  Meets ARINC 404A and ANSI/VITA 48.2
    •  Power supply and line filter combination optimized to meet MIL-STD-461E
    •  Includes SOSA aligned chassis manager, ethernet switch, and power supply
    •  Front panel USB-based maintenance port aggregator
    •  Designed to meet MIL-STD-810F, MIL-STD-461E, & MIL-STD-901D
    •  Optional Half ATR Tray with Shock Isolators available - part number CAS000200

    Datasheet3USOSAAlignedHalfATR
