    Dawn DEV-4200 3U OpenVPX up to 8-Slot Development System

    Nov. 18, 2024
    To 8-Slots of OpenVPX on 1″ pitch with or without RTM connectors. Available with any backplane topology. Choice of 12H, 5VH or VEN Power Systems.
    Related To: Dawn VME Products

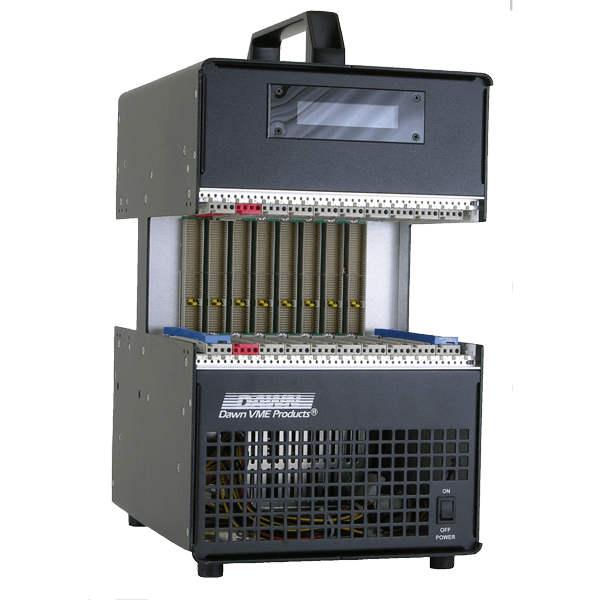

    Image provided by Dawn VMW Products
    DEV-4200

    Dawn’s DEV-4200 VPX Development System for 3U OpenVPX boards aligns well with the requirements specified within Draft 1.08 of VITA 65. Provides up to an 8-slot system for 3U convection cooled boards and 3U transition modules on 1.0 inch pitch. RuSH controlled power and cooling supports high current demands and corresponding high cooling requirements. Backplane profiles and topologies are available to test any board configuration.

    • Connectors may be partially populated for cost savings.
    • Performance Tested Cooling provides up to 20CFM/Slot at .24In. H2O.
    • Legacy wedge-lock or VITA 48.2 style card guides available as an option.
    • Chassis side panels removable (as shown) for sideboard access and probing.
    • Available for convection and conduction cooled boards.
    • Portable, attractive and travels well.
