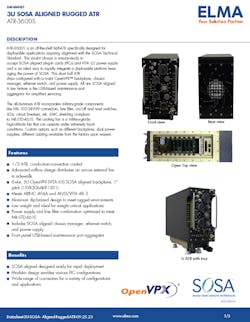

ATR-3600S is an off-the-shelf half-ATR specifically designed for deployable applications requiring alignment with the SOSA Technical Standard. This six-slot chassis is mission-ready to accept SOSA aligned plug-in cards (PICs) and VITA 62 power supply and is an ideal way to rapidly integrate a deployable platform leveraging the power of SOSA. This short half ATR ships configured with a 6-slot OpenVPX™ backplane, chassis manager, ethernet switch, and power supply. All are SOSA aligned. A key feature is the USB-based maintenance port aggregator for simplified servicing.
The all-aluminum ATR incorporates military-grade components like MIL- STD-38999 connectors, line filter, on/off and reset switches, LEDs, circuit breakers, etc. EMC shielding compliant to MIL-STD-461E. The cooling fan is a military-grade, high-altitude fan that can operate under extremely harsh conditions. Custom options such as different backplane, dual power supplies, different cabling available from the factory upon request.
