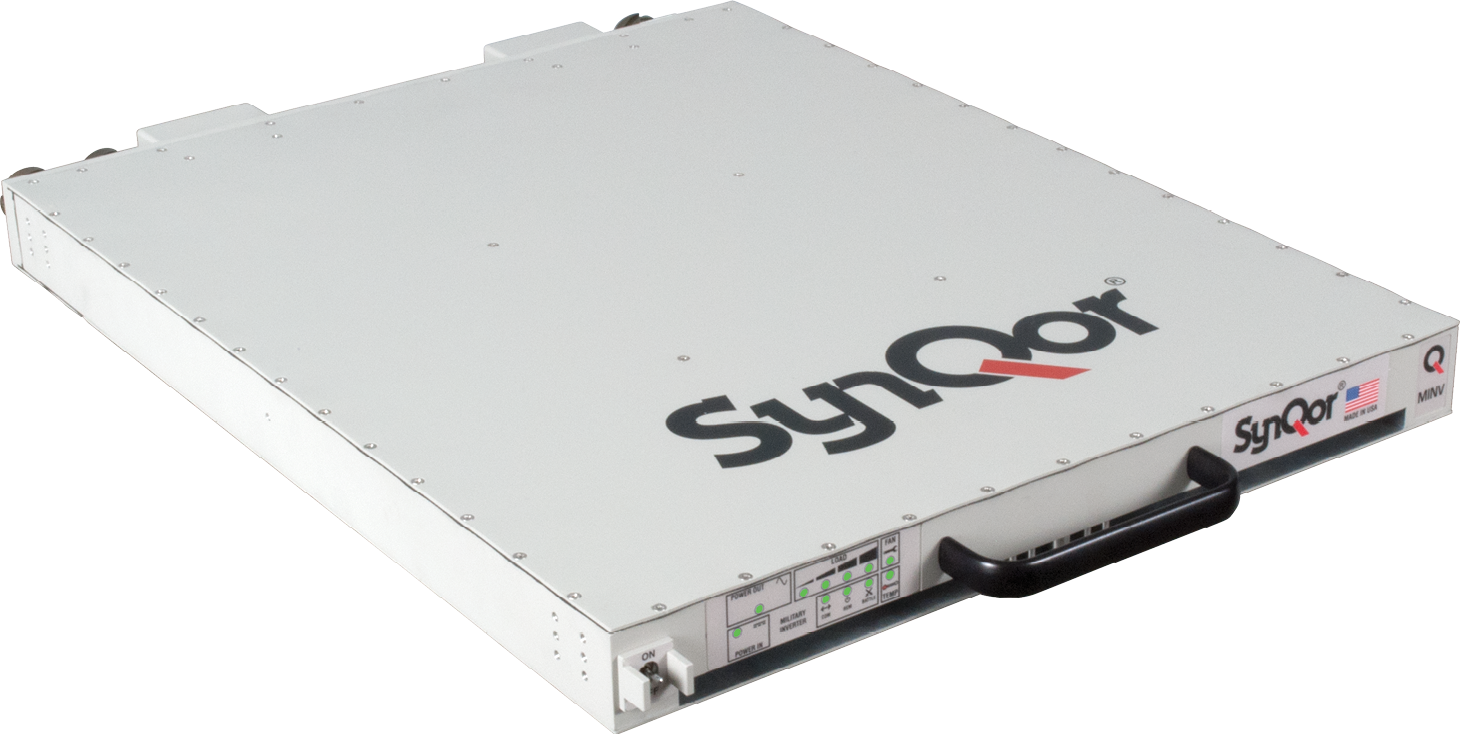

SynQor Military Inverters

SynQor’s Military Inverter units are designed for the extreme environmental and demanding electrical conditions of Military/ Aerospace applications. SynQor’s MINV “Field-Rugged” family of rack-mount products incorporates field proven high efficiency designs and rugged packaging technologies. This MINV will accept a DC input voltage while delivering a well-conditioned AC output to the load. It is designed and manufactured in SynQor’s USA facilities to comply with a wide range of military standards. Options include a selection of output voltage amplitudes, frequencies, and an electronic breaker on the AC output to permit fault-tolerant parallel operation for higher power and/or N+M redundant systems.

MINV Product Features

• Sealed, weather-proof, shock-proof construction
• 4000 W (5000 VA) output power
• Full power operation: -40°C to +55°C
• DC Input
• Pure sinusoidal AC output voltage (115 VAC, 60 Hz)
• Handles 0.0 - 1.0 power factor loads and non-linear loads
• Up to 32 units can be combined for higher power, voltage or a 3-phase AC output
• Up to 32 units can be combined to form a higher power fault-tolerant, glitch-free system, perhaps with N+M redundancy, by ordering with the “AC Output Electronic Breaker” option and the appropriate configuration cable
• Battle Mode for over-temperature events
• User I/O and Configuration signal ports
• 1U high rack–mount unit (17.00" x 22.43")
• Low weight: 30 lbs.

Specification Compliance

• MINV-4000 units are designed to meet:
  • MIL-STD-1399-300 - Interface Shipboard
  • MIL-STD-810 - Environmental Engineering
  • MIL-STD-461 - Electromagnetic Interference
  • MIL-STD-704 - Aircraft Electrical Power
  • MIL-STD-1275 - Vehicle Electrical Power

Options

• 115 Vrms or 230 Vrms AC output
• 50 Hz, 60 Hz, or 400 Hz AC output
• Shipboard version with floating neutral wire
• 28 Vdc or 270 Vdc input options available
