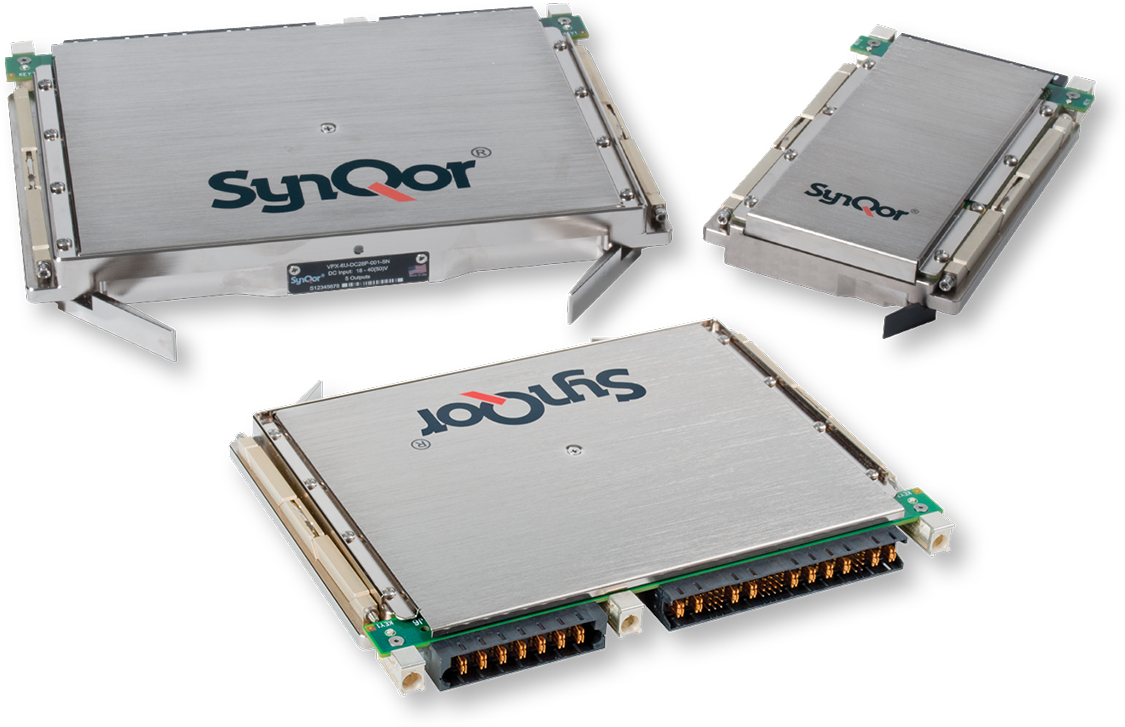

SynQor VITA 62 VPX Power Supplies

The VPX power supplies are compliant with VITA 62, MIL-STD-704, MIL-STD-461 and MIL-STD-810 for 28 Vdc, 270 Vdc and AC-DC systems. The VPX delivers up to 1000 W and up to 6 outputs with a typical high efficiency of 91%. These rugged power supplies are offered in 3U and 6U size packages with internal conduction cooling and high speed backplane connectors.To learn more visit our Product Guide or contact a SynQor representative.

VPX Product Features

• VITA 62 and 47 Compliant
• Maximum Total Output Power: 1000 W
• Input EMI Filtering
• -40°C to 85°C Operating Temperature (at card edge)
• Active current share through backplane
• Over-current, over-voltage, over-temperature protection and Remote Sense
• Standard VITA 62 power supply controls
• Conformal Coating Option available
• Optional I²C Function
  • Supports IPMI/PMBus/VITA 46.11
  • Input Reverse Polarity Protection

Specification Compliance

• VPX units are designed to meet:
  • VITA 47
  • VITA 62
  • MIL-STD-461 - Electromagnetic Interference
  • MIL-STD-704 - Aircraft Electrical Power
  • MIL-STD-810 - Environmental Engineering
  • MIL-STD-1275 - Vehicle Electrical Power – T version
