Universal AC input power supply delivers that meets MIL-704(B-F) input dropout transients introduced by SynQor

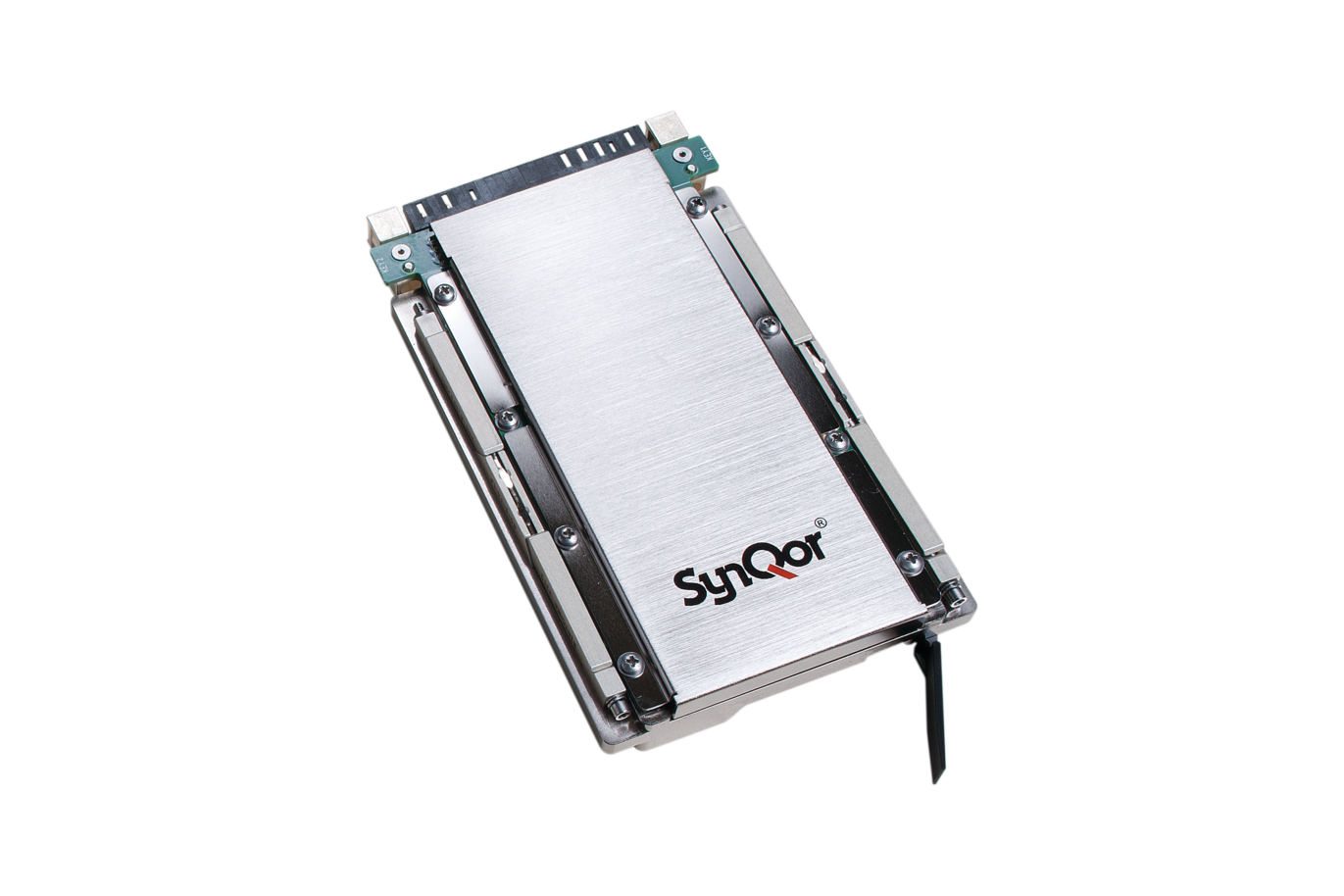

The long holdup VPX-3U-ACUNV universal AC input power supply delivers 300 W with an efficiency of 84%. This unit has been designed to meet MIL-704(B-F) input dropout transients. It is able to operate at wedge lock temperatures as high as 85°C with full output power. The VPX can be powered over a dual frequency range, 47 to 63 Hz and 360 to 800 Hz, with a power factor of 0.99 at 50/60 Hz and 0.97 at 400 Hz. The power module is equipped with several features, including an integrated EMI filter, conduction cooling, six output voltages, and protections for over voltage, under voltage, short circuit and over temperature conditions.  It has an optional I²C communications feature (IPMI, PMBus, VITA 46.11). The VS1 (+12 V), VS2 (+3.3 V) and the VS3 (+5 V) outputs can be load shared on a standard VITA 62 chassis.  It has been designed for the most demanding military applications. The VPX power supply unit meets VITA 46, VITA 47, VITA 62, MIL-STD-461F, MIL-STD-704 (B-F), and MIL-STD-810G standards.SynQor's products have a proven record of going above and beyond the standard military specifications to deliver the most efficient and dependable solutions in the market.

Features

• Universal AC Input 85 to 264 Vrms, 47 to 63 Hz and 360 to 800 Hz, PF ≥ 0.99
• Six Outputs (VS1: +12V; VS2: +3.3V; VS3: +5V; Aux: +3.3V, +12V and -12V)
• 300 W Output Power
• Temperature Operating Range: -40 to 85 °C
• Long Holdup capable of meeting MIL-STD-704F input dropout requirements
• Integrated EMI Filter
• Over Voltage, Under Voltage, Short Circuit, Over Temperature Protections
• Current Sharing on VS1, VS2 and VS3 outputs
• Optional I²C communication function (Supports IPMI, PMBus, VITA 46.11)

Specification Compliance

• VITA 46
• VITA 47
• VITA 62
• MIL-STD-461F
• MIL-STD-704 (B-F)
• MIL-STD-810G

​For additional details, download the VPX-3U-ACUNV-1-CH-001 datasheet and download the VPX 3U I2C Operator's Guide.   For more information or for additional power application assistance please explore more at www.synqor.com or contact your Local SynQor Representative.
