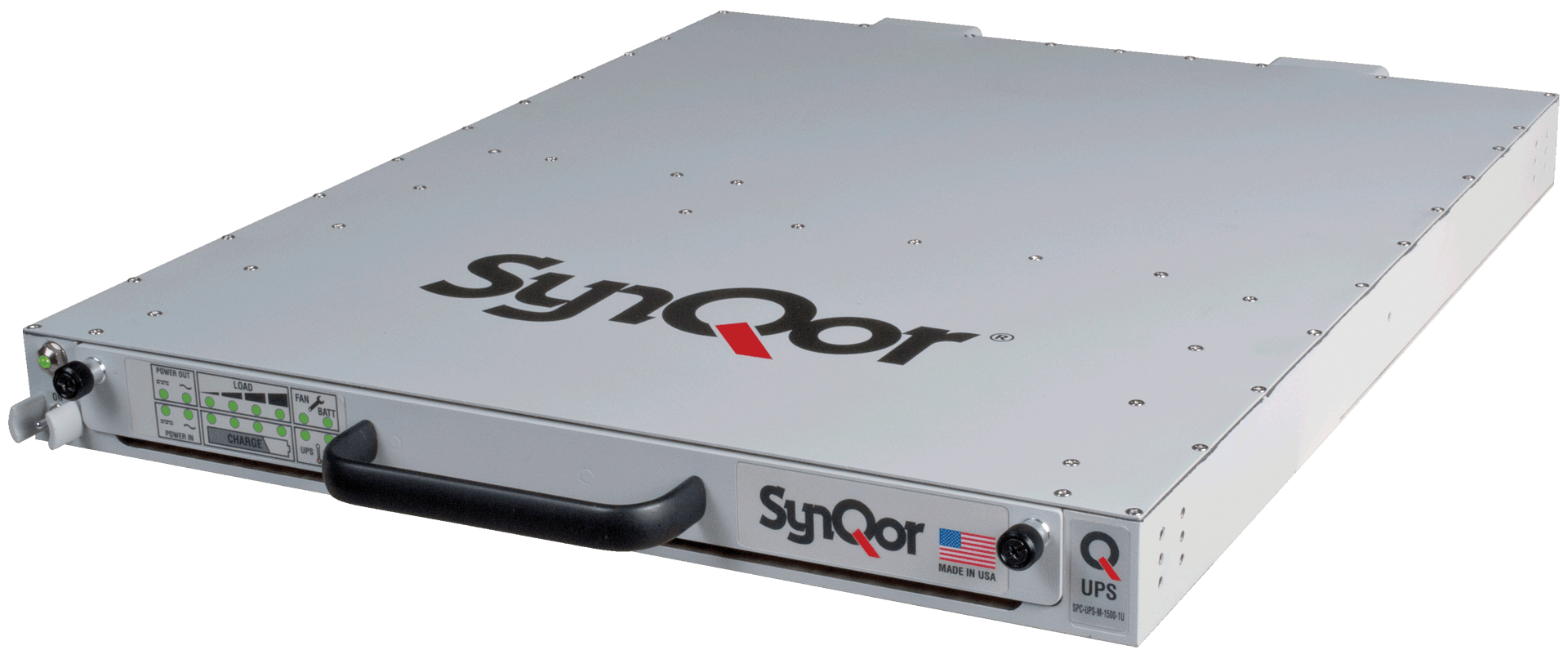

SynQor’s Military Field-Grade Uninterruptible Power Supply units are designed for the extreme environmental and demanding electrical conditions of Military/Aerospace applications. SynQor’s UPS incorporates field proven high efficiency designs and rugged packaging technologies. This UPS will accept a wide range of input voltage and frequency values while delivering a well-conditioned AC output to the load. Up to three units can be combined to provide higher power, higher voltage and/or multiple output phases. The use of lithium polymer batteries permits the lowest profile and lowest weight solution in its power class. It is designed to comply with a wide range of military standards. Options include a 500 W or single 1250 W DC output, a DC input rated for military 28 VDC sources, and an electronic breaker on the AC output provides fault-tolerant parallel operation for higher power and/or N+M redundancy.
Features:
Sealed, weather-proof, shock-proof construction
Hot swappable internal battery pack (lithium polymer)
>10 minute run-time at full power
1250 W (1500 VA) output power
Full power operation: -20°C to +55°C
3 Phase AC input: 360 - 528 Vrms (L-L)
Wide range AC input frequency: 47 - 800 Hz
Power factor correction at AC input
Dual input (AC and optional DC)
True on-line double conversion
Cold start with no AC or DC input connections
Pure sinusoidal AC output voltage
Handles 0.0—1.0 power factor loads and non-linear loads
Up to 3 units can be combined for higher power, voltage or a 3-Phase AC output
Up to 32 units can be combined to form a higher power fault- tolerant, glitch-free system, perhaps with N+M redundancy, by ordering with the "AC Output Electronic Breaker" option and the appropriate configuration cable
User I/O and Configuration signal ports
1U high rack mount unit (17.00"W x 22.64"D x 1.73"H)
Low weight: 33 lbs. (including battery)
Options:
DC input (28 Vnom) for dual source
UPS-1500-H-1U > 13.5 minutes of run-time
UPS-1500-M-1U > 16 minutes of run-time and -40°C operation
UPS-1500-E-2U >24 minutes of run-time
115 Vrms or 230 Vrms AC output
50 Hz, 60 Hz, or 400 Hz output
DC1: Auxiliary isolated DC output (up to 500 W)
DC2: High power DC output (up to 1250 W) parallelable for higher power
Shipboard version with floating neutral wire
Specification Compliance:
UPS-1500 units are designed to meet:
MIL-STD-1399-300B - Interface Std for Shipboard Systems
