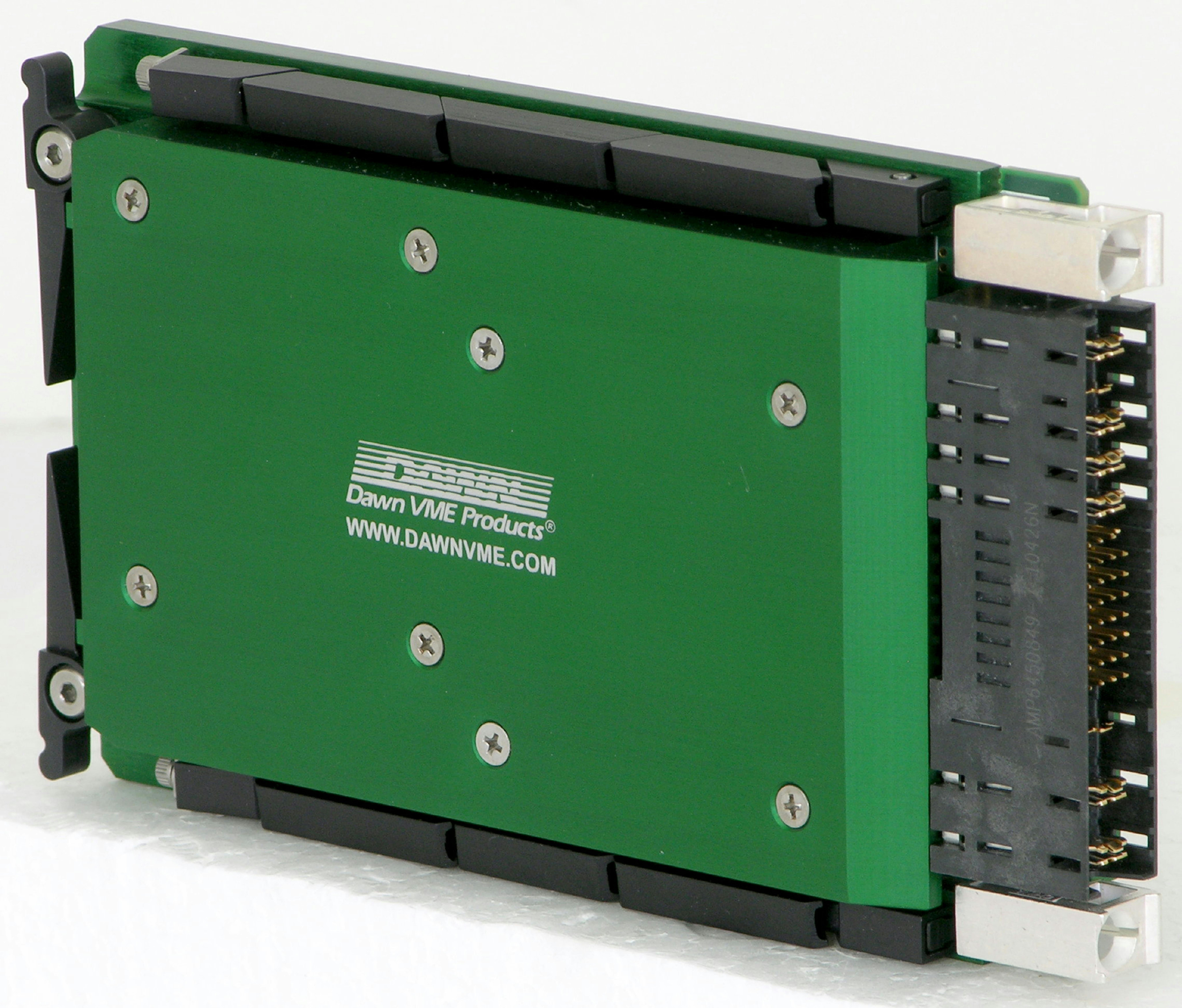

PSC-8742 Low Power High Efficiency with Integrated Hold-up

Dawn PSC-8742 Low Power High Efficiency with Integrated Hold-up Power Supply. 20W to 190W low power, high efficiency 28V DC/DC power supply with MIL-STD-704 Hold-up of 50 msec integrated for 135W load. Available in Standard VPX and SOSA VPX versions.

Dawn PSC-8742 (Standard VPX version) offers following output currents:

• +5V @ 20A.

• +3.3V @ 4A (& 3.3V_Aux).

(Note: Total wattage from +5V & +3.3V outputs not to exceed 100W).

• +12V @ 6A.
• -12V_Aux @ 3A.

• +12V_Aux @ 3A.
(Note: Total wattage from +12V & +12V_Aux outputs not to exceed 72W.)

Dawn PSC-8742 (SOSA VPX version) offers following output currents:

• +12V @ 10A (VS3).
• +3.3V @ 4A (& 3.3V_Aux).
(Note: Total wattage from +12V (VS3) & +3.3V outputs not to exceed 120W.)
• +12V @ 6A (VS1).
• -12V_Aux @ 3A.
• +12V_Aux @ 3A.
(Note: Total wattage from +12V & +12V_Aux outputs not to exceed 72W.)
(Note: Total wattage from -12V_Aux outputs not to exceed 36W.)
