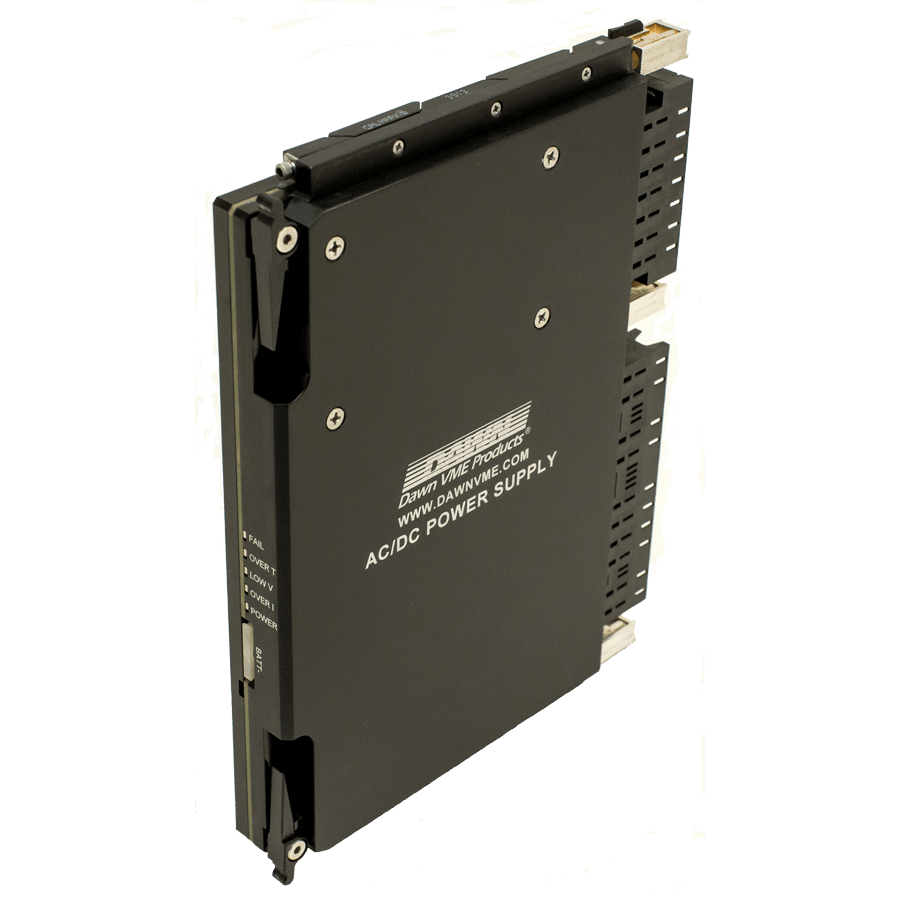

The 6U PSC-6265 operates continuously at a power level of 580 watts. The standard model is conduction to wedge lock cooled with an operating temperature range of -40C to +85C and a non-operating range of -55C to +105C, and is compatible with Dawn’s HLD-6262 Holdup Module.
• Continuous 580W output over temperature range of-40C to +85C. • True 6 Channel supply provides full OpenVPX support. • Current/Load share compatible with up to 3 PSC-6265 units. • Output over-voltage, over-current, and over-temperature shutdown protection.
• Standard INHIBIT*, ENABLE*, FAIL* and SYSRESET* control signals.
• VBAT for support of VPX memory backup power bus.
