High Power Pulsed 2.94 μm Er:YAG Diode Pumped Laser
Jan. 26, 2022
Related To:
3 micron Laser Technology
LASER HEAD
Monolithic design, no alignment needed
Maximum pulse energies at different pulse lengths and frequencies: 5J @ 1.5ms @ 15 Hz, 3.2 J @ 1ms @ 25 Hz, 1.6 J @ 0.5ms @ 50 Hz
Maximum average power: 80 W
Maximum peak power: 3.2 kW
Pulse duration: 100 - 1500 μs
Repetition rate: 15 - 100 Hz
Maximum duty cycle: 2.5%
Application: Pump Fe:ZnSe laser

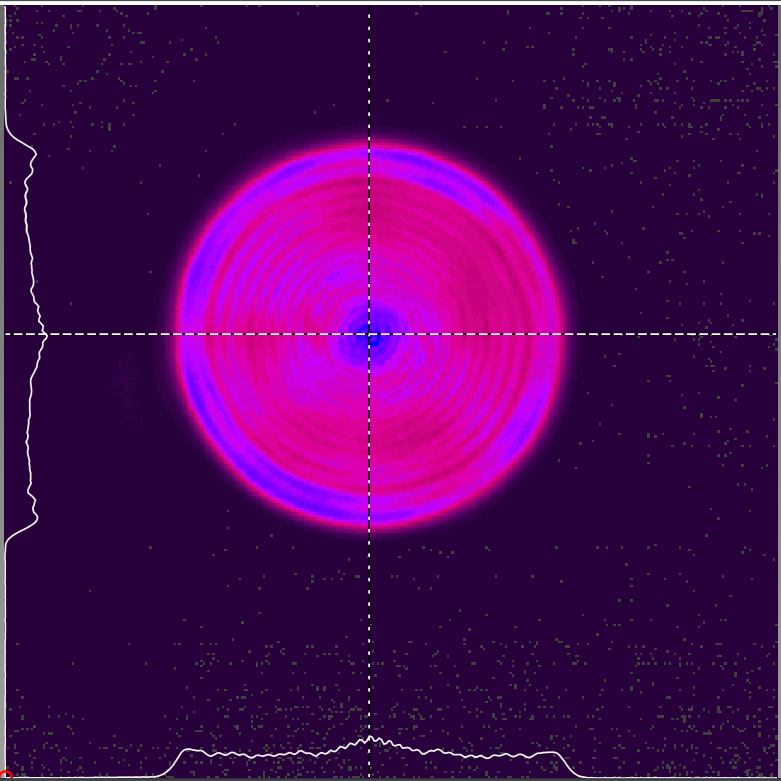

BEAM SPATIAL PROFILE
Beam spatial profile: Top hat
Diameter at output: 5 mm
Half divergent angle: 25 mrad
BPP: 50 mm mrad; M^2: 50
LASER DRIVER AND COOLER
Laser controller
DC power supply
Laser diode driver
Termotek chiller
TEMPORAL PROFILE
Free running
Flat top
