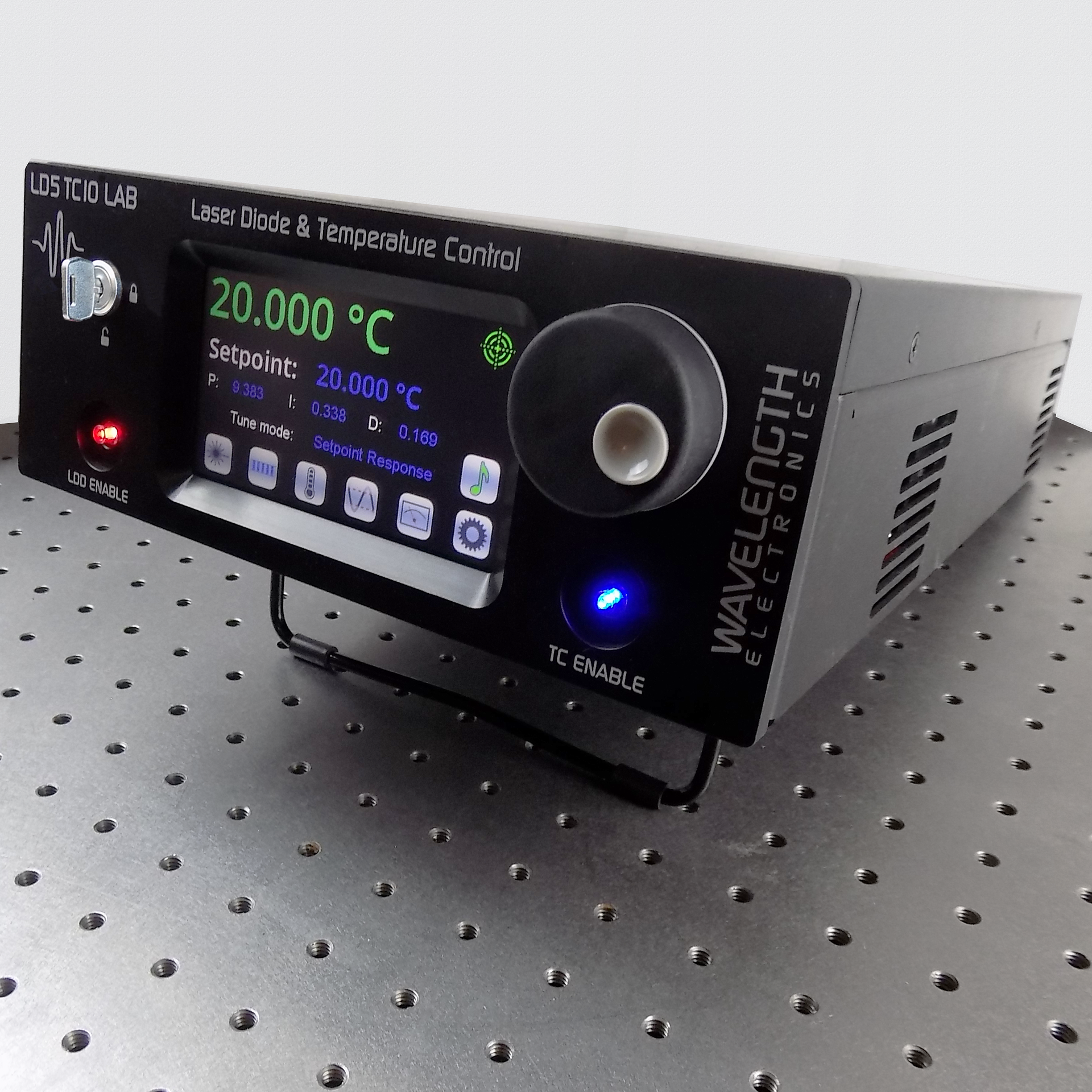

    LDTC LAB Series Laser Diode & Temperature Control Instrument

    March 25, 2022
    Related To: Wavelength Electronics Inc
    Ld5tc10 623e06e113938

    The LDTC LAB Series instruments combine best-in-class low noise, high-end digital laser diode control with an IntelliTune® smart temperature controller. If you need stable wavelength, stable temperature (better than 0.0009ºC with thermistors), stable laser diode current or power, or low noise (RMS laser driver noise as low as 7 µA), these offer the best performance and value. The LD2TC5 LAB outputs up to 2 and 5 A for the laser and thermoelectric, respectively. The LD5TC10 LAB outputs up to 5 and 10 A. Both models offer 10 V of laser compliance voltage and 15 V of thermoelectric compliance voltage.

    The touch-screen interface makes operation intuitive and simple. A LabVIEW® virtual instrument, remote command set, and USB interface allow integration into an instrument library.
