Brushless linear voice coil motors for motion control in antenna positioning introduced by Moticont

VAN NUYS, Calif. –VAN NUYS, Calif. Moticont in Van Nuys, Calif., is introducing the three linear voice coil motors in the GVCM-095-089 series for antenna positioning, testing, slide actuators, valve actuation, medical devices, optical focusing, and wafer handling.

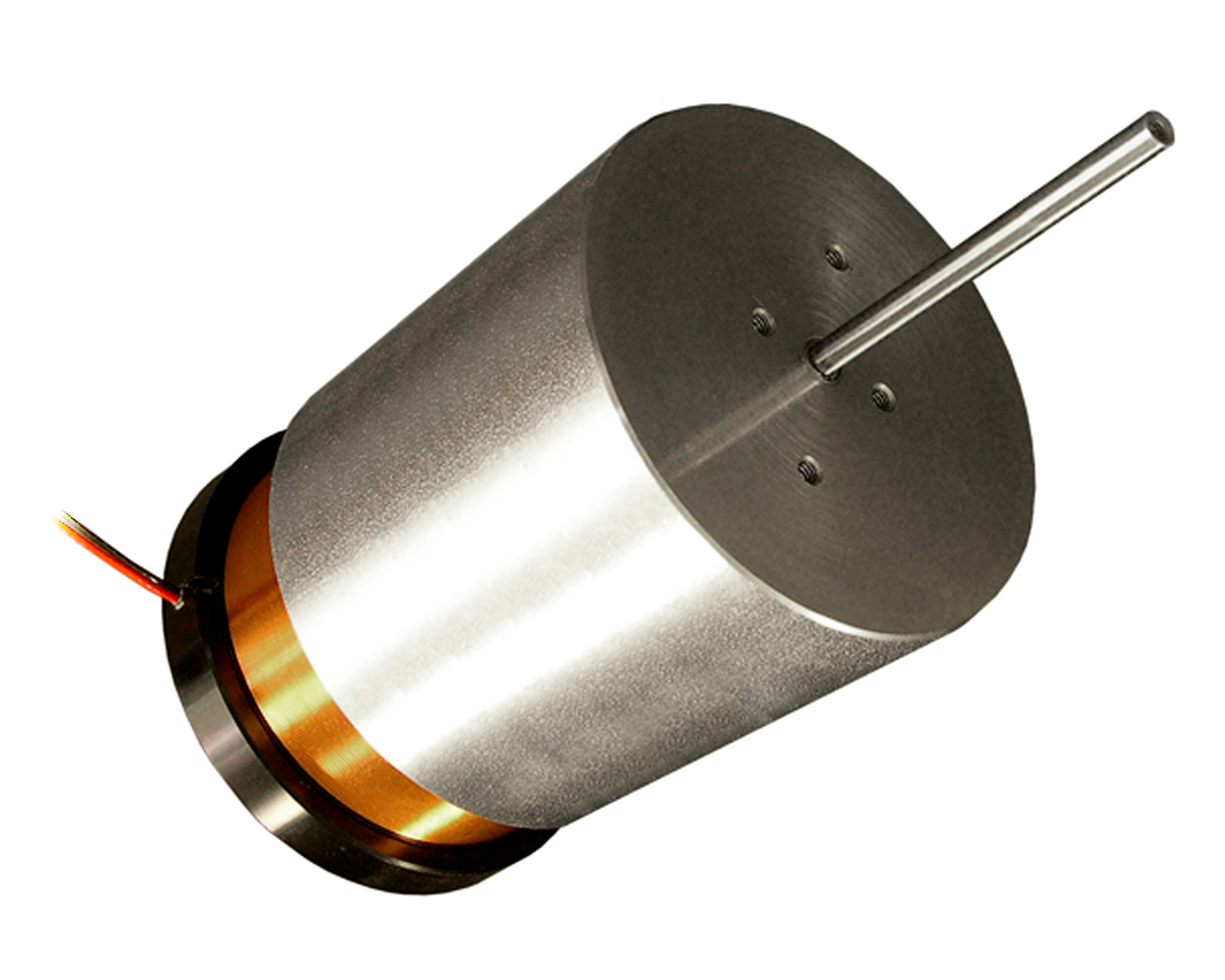

The GVCM-095-089 series of motion control motors offers an internal shaft and bearing, and features the same housing measuring 3.5 inches long by 3.75 inches in diameter.

The motors feature a 2.5-inch stroke and a continuous force of 25.0 pounds and 79.0 pounds of peak force at a 10 percent duty cycle. It has a 1-inch stroke and a continuous force of 58 pounds and 183.1 pounds of peak force at a 10 percent duty cycle, and a 0.5-inch stroke and a continuous force of 63.9 pounds and 202 pounds of peak force at a 10 percent duty cycle.

Each motor has a long-life plain bearing that permits side loads as strong as three pounds. The precision-ground 0.236-inch diameter shaft has an internal thread.

The cog-free motion of these low-inertia brushless GVCM-095-089 series linear voice coil motors are ideal for: These new voice coil actuators feature: High speed, high acceleration/deceleration, zero backlash, high force to size ratio and high accuracy, and high repeatability when used in a closed loop servo system.

For more information contact Moticont online at www.moticont.com.
