Linear actuator for new and existing motor and motion control and positioning introduced by Moticont

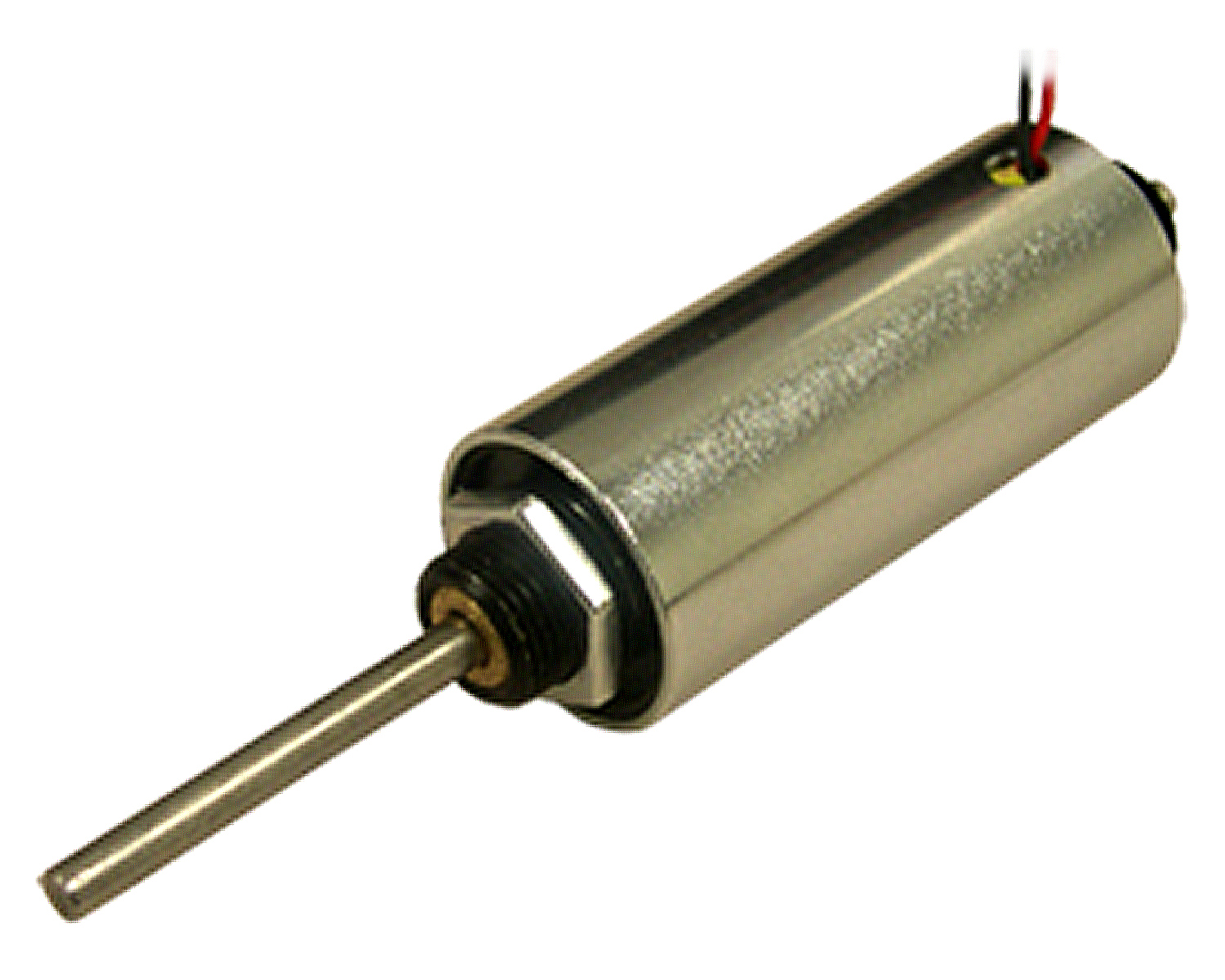

VAN NUYS, Calif. – Moticont in Van Nuys, Calif., is introducing the low-cost DDLM-019-044-01 non-commutated linear actuator for new and existing motion control and positioning applications.
This compact, zero-cogging, clean, quiet, enclosed linear actuator for motor control uses -- also referred to as an electric cylinder -- measures 0.750 inches in diameter, 1.75 inches long, and has a stroke of 0.46 inches.
This linear actuator can develop 11 ounces of continuous force and 34.8 ounces peak force. Direct coupling to the load results in zero backlash and enables smooth high acceleration, deceleration, and high-speed positioning.
The 0.125-inch-diameter shaft has an internal thread on each end, a total of length of 3.46 inches, and extends 1.085 inches past the mounting end of the actuator. The shaft extends through the 3/8-32 UNF 0.250-inch long threaded studs at each end of the housing, which can be used for mounting the DDL-019-044-01 linear actuator. Long-life plain linear bearings support the internal shaft at both end of the actuator.
Controllable force and power, stroke length and speed, low noise, and maintenance free, the DDLM-019-044-01 can be used with a position sensor and controller for the high repeatability and accuracy of a closed-loop application.
For more information contact Moticont online at www.moticont.com.
