Power feed-thru termination that matches RF components with high-impedance test gear offered by BroadWave

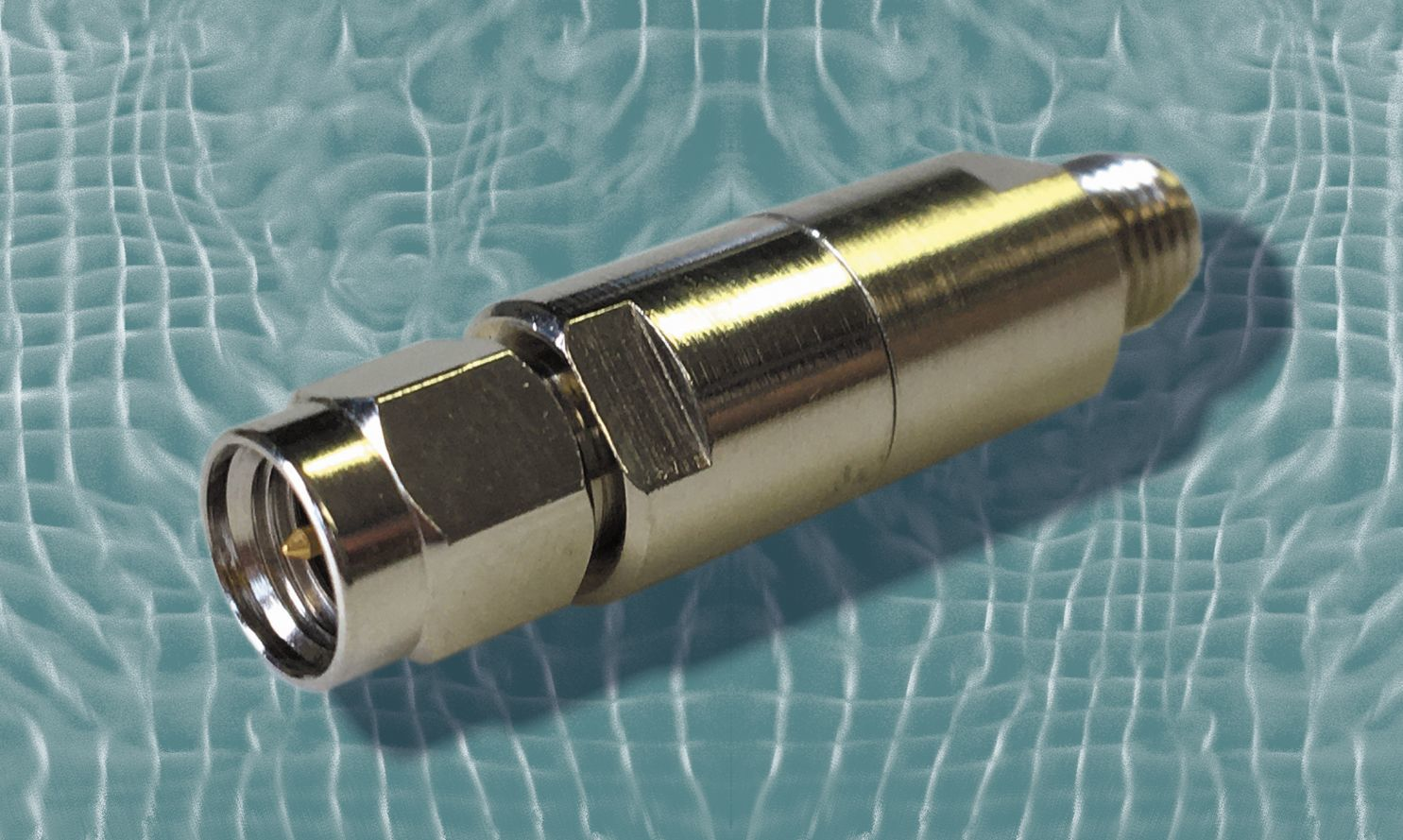

GREENWOOD, Ind. – BroadWave Technologies Inc. in Greenwood, Ind., is introducing the model 851-101-FTT 50 Ohm feed-thru termination operating from DC to 1000 MHz.
This unit exhibits 1.20:1 maximum voltage standing wave ratio (VSWR), is rated 2-Watts average power, and has a SMA male and SMA female connector configuration.
BroadWave Technologies feed-thru terminations are designed to match RF components with high impedance test equipment such as oscilloscopes.
Standard impedances are 50, 75, 93, 150, 300, 500, 600, and 1000 Ohms. Standard connector configurations are BNC, Type N, SMA, and TNC.
Application-specific impedances and mixed connector configurations are available. For more information contact BroadWave Technologies online at www.broadwavetechnologies.com.
