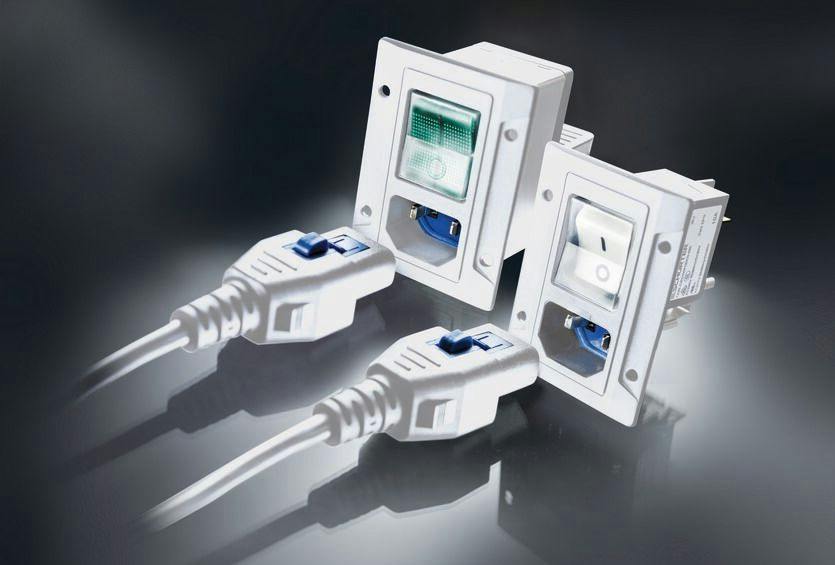

SANTA ROSA, Calif. – SCHURTER Inc. in Santa Rosa, Calif., is introducing the series DG11 and DG12 ingress protection for IEC inlets exposed to liquids such as medical instruments and portable outdoor equipment.
The series DG11 and DG12 come with and without mains filter, and consist of a seal gasket between the connector and mating V-Lock power cord.
The blue colored latch of the V-Lock power cord and blue inlay of the appliance inlet indicate that the two have been equipped to provide an IP54 rating under load.
The unit is screw mounted and rated IP67 between the power entry module and the panel, and includes a C14 or C18 appliance inlet, a recessed circuit breaker with 1- or 2-pole resettable overcurrent protection and 2-pole ON/OFF switch, a mains filter for standard or medical low leakage applications, and a IP54 seal protection between inlet and latching power cord.
The circuit breaker switch is available lighted or unlighted in a selection of colors and ON/OFF printing/embossing. Illumination supply voltage is 240 V or 120 V. Rated for power as strong as 10 amps at 250 volts AC according to IEC, and 15 amps at 250 volts AC according to UL/CSA.
For more information contact SCHURTER online at www.schurter.com.
