Linear voice coil servo motor for laser beam steering, optical focusing, and testing introduced by Moticont
VAN NUYS, Calif. – Moticont in Van Nuys, Calif., is introducing the GVCM-032-038-02M linear voice coil servo motor for laser machining and drilling, work holding and clamping, scanners, laser beam steering and filtering, optical focusing, dynamic vibration absorption, testing, sorting, and assembly applications.

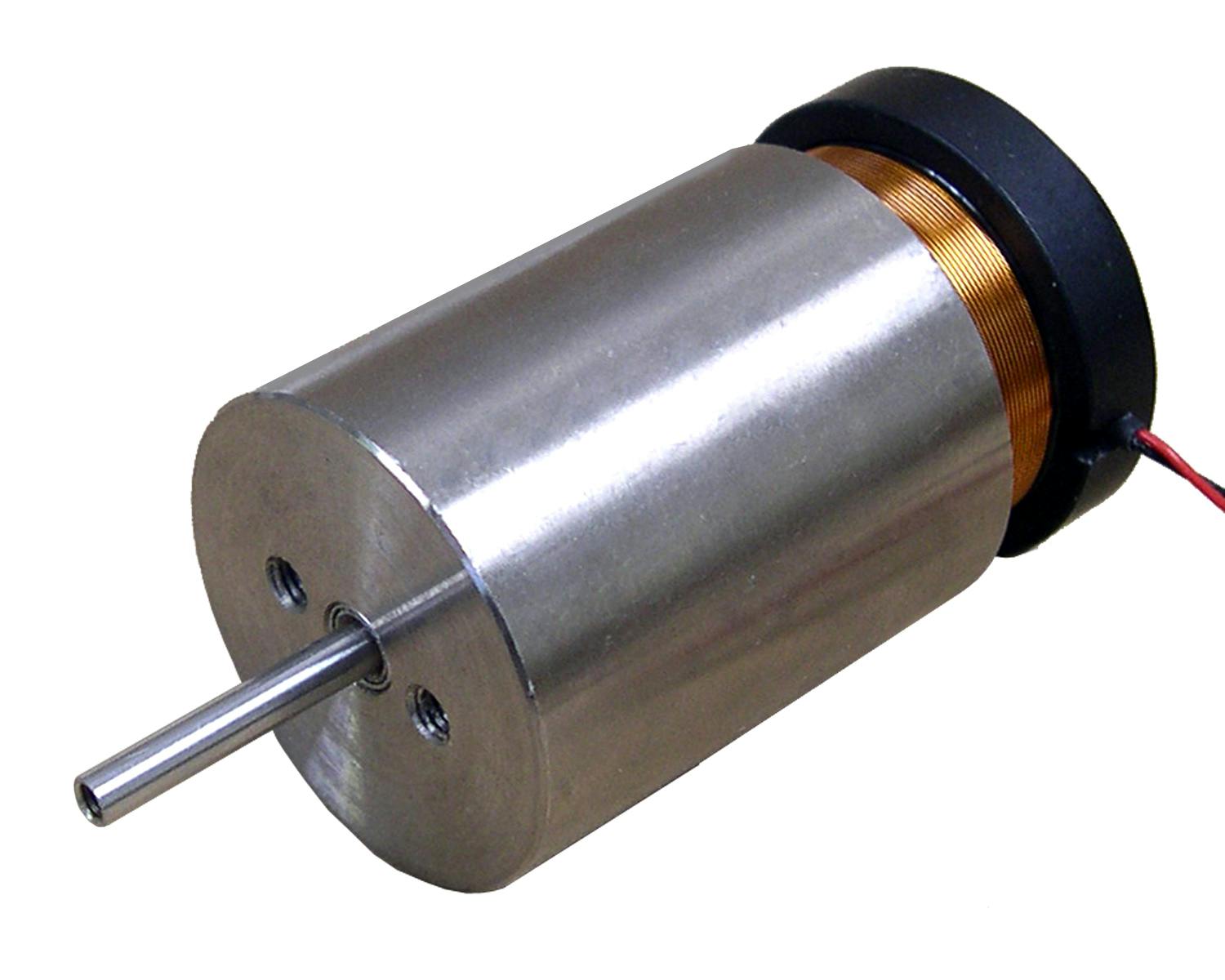

The GVCM-032-038-02M linear voice coil servo motor has a 25.4-millimeter stroke with built-in shaft and bearing and is 31.8 millimeters in diameter.
The combined length with the coil end is 47.63 millimeters long, and in the fully extended position, extends 28.6 millimeters beyond the face of the housing. The shaft has an M2.2X0.45 x 0.20 thread, and the housing and coil ends have two M3.5X0.6 0.20 mounting holes on a 12.7-millimeter bolt circle for integration into or existing applications.
This compact linear servo actuator features a continuous high-force-to-size ratio of 1.9 pounds and 5.9 pounds of peak force at a 10-percent duty cycle.
The servo motor features high reliability, high speed, zero cogging, high acceleration and deceleration, and when used in a closed servo loop, high accuracy and repeatability. These non-commutated brushless linear servo motors are available as complete plug-and-play servo control system.
For more information contact Moticont online at http://moticont.com/voice-coil-motor.htm.
