Wilkinson power divider for beam shaping, antennas, radar, and test and measurement introduced by Broadwave
Nov. 10, 2020

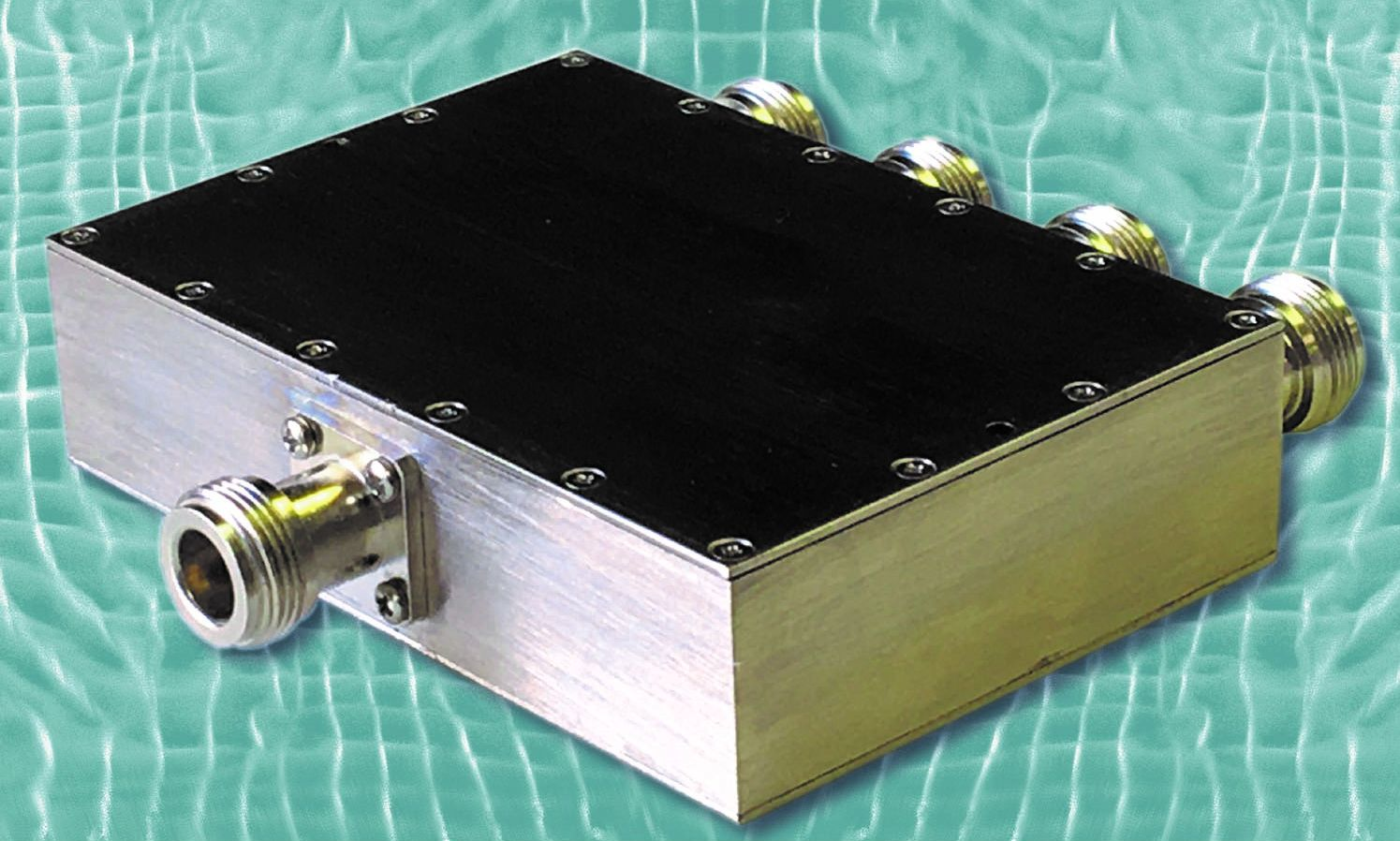

GREENWOOD, Ind. – BroadWave Technologies Inc. in Greenwood, Ind., is introducing the model 152-085-004 Wilkinson power divider for beam shaping antennas, antenna systems, radar systems, and test and measurement applications.
The model 152-085-004 has a five-Watt average power rating, and is a 50-Ohm four-way power divider with an 800-to-2700 MHz frequency range.
This unit for antenna systems features 25-decibel typical isolation, 1.50:1 maximum voltage standing wave ratio (VSWR) and 1.2-decibel maximum insertion loss above theoretical loss.
The amplitude tracking of this power divider is plus-or-minus 0.5-decibels, and the RF and microwave device operates in temperatures from-55 to 85 degrees Celsius. The RF connectors are N female.
BroadWave manufactures a wide variety of Wilkinson power dividers in 2, 3, 4, 6, and 8-way configurations. Available connector types are BNC, F, N, SMA and TNC or mixed connector types for unique applications.
For more information contact BroadWave Technologies online at www.broadwavetechnologies.com.
