Voltage-controlled RF and microwave programmable attenuator with female SMA connectors offered by Broadwave

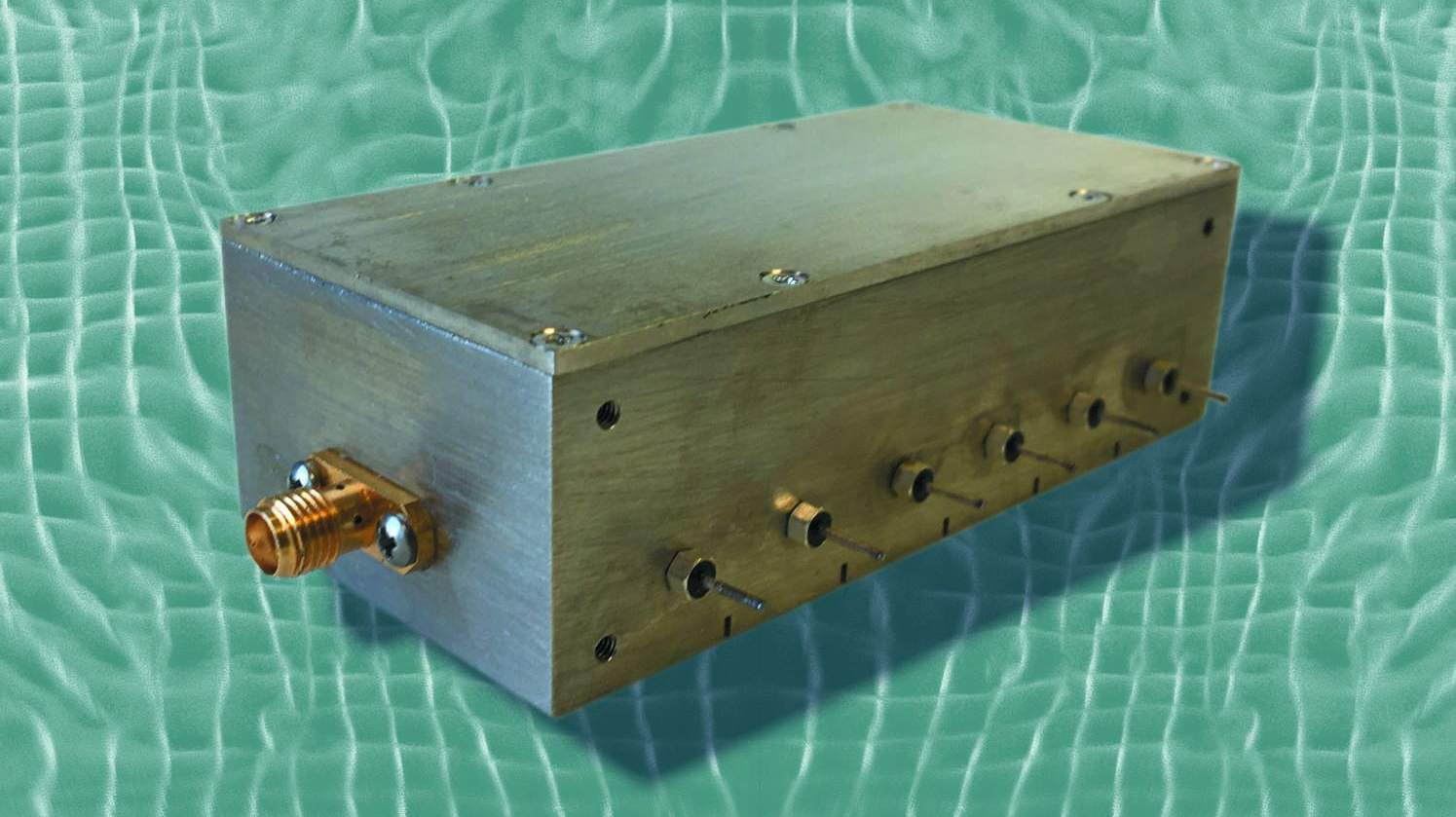

GREENWOOD, Ind. – BroadWave Technologies Inc. in Greenwood, Ind., is introducing the model 631-031-063 voltage-controlled programmable attenuator for aerospace and defense applications.

This voltage controlled programmable attenuator features a 63-decibel dynamic range in 1-decibel steps, is rated 1-Watt average input power and has SMA female RF connectors.

Attenuation accuracy is plus-or-minus 0.5-decibel or 2 percent of programmed and is controlled via solder terminal connectors. The supply voltage 12 volts DC at 30 milliamps nominal per section resulting in 10 milliseconds switching speed.

The 50 Ohm RF and microwave attenuator has an operating frequency range of DC to 2200 MHz; a maximum voltage standing wave ratio (VSWR) of 1.40:1; and insertion loss of 3.5-decibels maximum. Other impedance and connector options also are available.

For more information contact Broadwave Technologies online at www.broadwavetechnologies.com.
