Double-ridge waveguide components for SATCOM, radar, and test instrumentation introduced by Pasternack

IRVINE, Calif. – Pasternack, an Infinite Electronics brand in Irvine, Calif., is introducing a new series of double-ridge waveguide components for satellite communications (SATCOM), radar, wireless communications, and test and instrumentation.

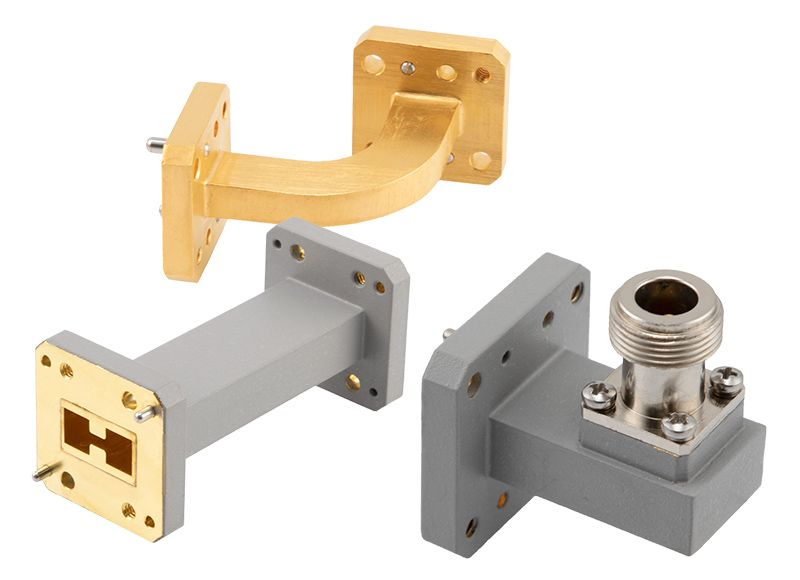

This series consists of 28 models that include WRD-180, WRD-650, and WRD-750 sizes. Products include straight sections, bends, and twist configurations.

These transmission line components deliver RF performance, cover wide frequency bands and offer low cut-off frequencies compared to conventional rectangular waveguide components.

These RF and microwave components are available that feature WRD-180, WRD-650 ,and WRD-750 waveguide sizes, SMA, N-type and 2.92-millimeter connectors, UG-style square cover flanges, and typical voltage standing wave ratio (VSWR) performance as low as 1.5:1.

For more information contact Pasternack online at www.pasternack.com.
