Type N no-solder male straight connector for low loss-coax introduced by Times Microwave

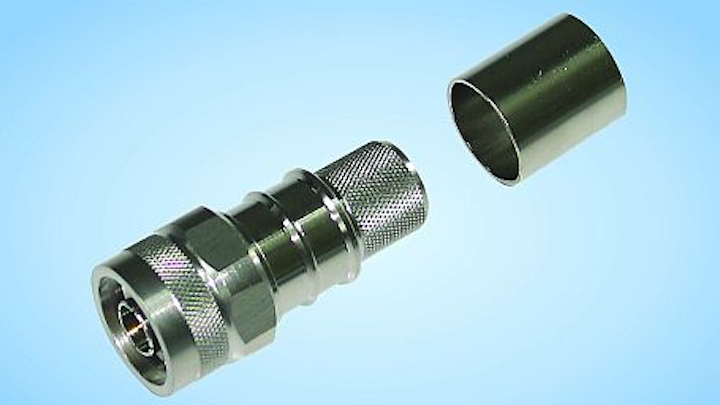

WALLINGFORD, Conn., 17 Jan. 2014. Times Microwave Systems in Wallingford, Conn., is introducing the EZ-500-NMH-X type N no-solder male (plug) straight connector for LMR-500 low loss coaxial cable in RF and microwave applications.
The crimp-style connector neither requires soldering of the center conductor into the contact, nor braid trimming, making it suitable for field installations.
The EZ-500-NMH-X is compatible with the CST-500 cable prep tool and the HX-4 (with Y151 dies) crimp tool. Other features include combination hex/knurl coupling nut; EZ spring finger contact; tri-metal plating instead of silver (eliminates tarnishing; chamfered cable entry hole for ease of termination; ridged landing area on the aft end for better grip and sealing of the heat shrink boot; and impedance matching for low VSWR.
For more information contact Times Microwave online at www.timesmicrowave.com.
