High-frequency launch plug for RF and microwave and data transmission uses introduced by Amphenol RF

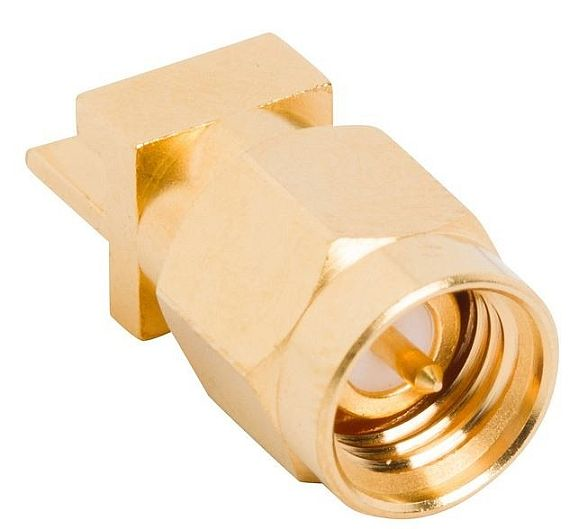

DANBURY, Conn. – Amphenol RF in Danbury, Conn., is introducing the High-Frequency SMA End Launch plug for high-frequency RF and microwave applications in radio frequency, microwave, and data transmission.

This 50 ohm connector makes a printed circuit board connector solution, and offers voltage standing wave ratio (VSWR) performance to 26.5 GHz and features an optimized end launch design with traditional slide-on mounting legs.

The plug is precision-machined with a brass body and beryllium copper gold-plated contact. It also features a PTFE insulator to withstand high temperatures.

Amphenol's High-Frequency SMA End Launch connector series includes through-hole and traditional edge-launch jack options for a variety of circuit board thicknesses, in addition to captivated 0.01- and 0.01-inch diameter center contacts that will accommodate different substrate widths.

Custom solutions also are available for optimization to customer-specific circuit board launches.

For more information contact Amphenol RF online at www.amphenolrf.com.
