NEW ALBANY, Ind. – Samtec Inc. in New Albany, Ind., is introducing the LL043 series Nitrowave high-performance microwave cable assembly for test and measurement, 5G data communications, aerospace and defense, and semiconductor applications.

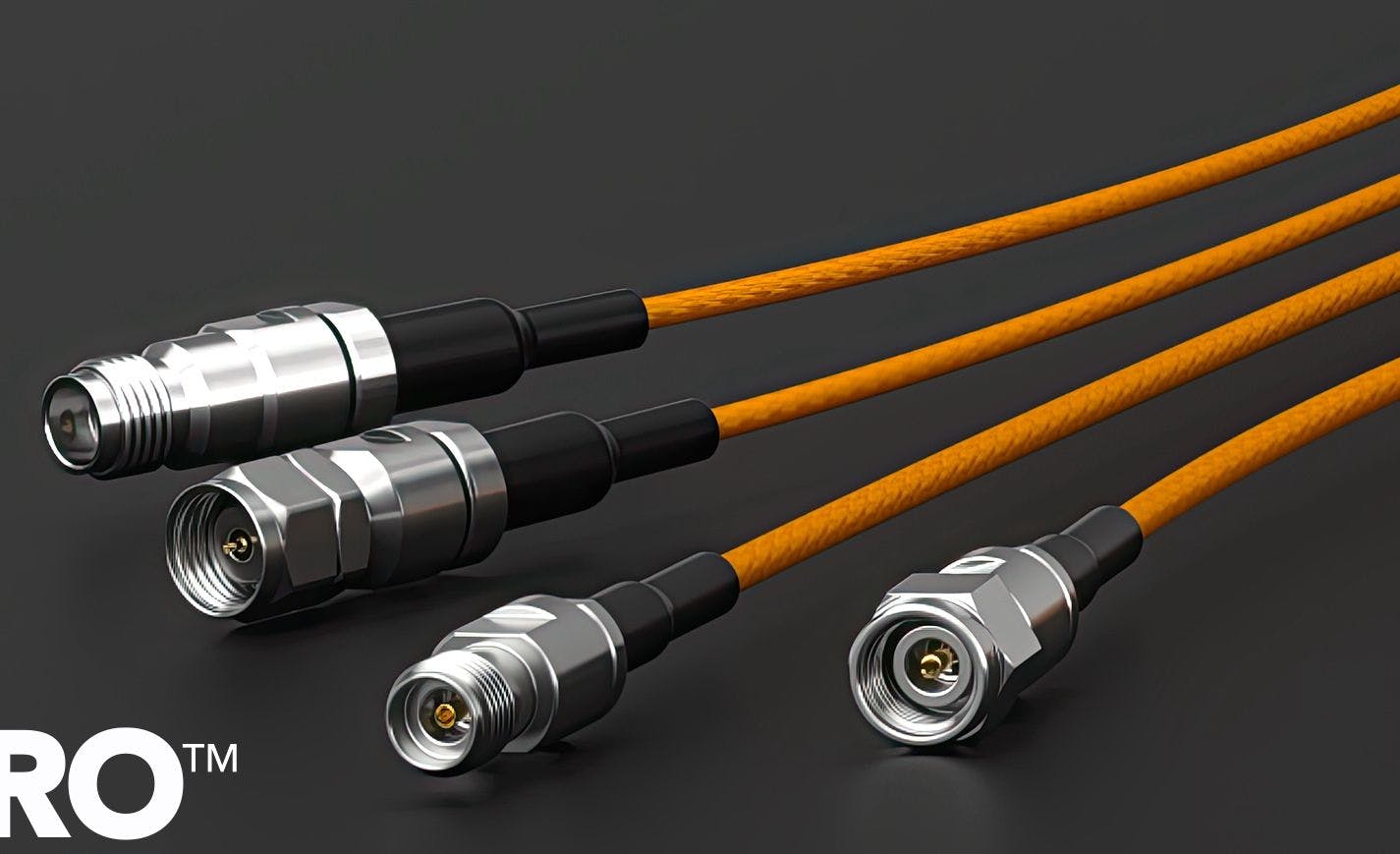

These flexible low-loss microwave coaxial cable assemblies are orange in color, and offer optimized construction for phase and amplitude stability.
An interlayer enables consistent electrical performance throughout the cable's life span, with low-density PTFE dielectric material. Flex life is tested to 400,000 cycles and torque life to 1,000,000 cycles with 90-degree turns.(+/- 90-degrees).
The LL043 series microwave cable assembly is optimized to 43.5 GHz; with a maximum voltage standing wave ratio (VSWR) of 1.4:1. Shielding techniques with consistent contact resistance between layers, results in 100-decibel minimum shielding effectiveness against electromagnetic interference.
Connector end options include SMA plug or SMA bulkhead jack to 26.5 GHz, or 2.92- and 2.4-millimeter plugs to 43.5 GHz. LL043 is available in standard assembly lengths of 12, 24, and 39.37 inches.
For more information contact Samtec online at www.samtec.com/products/ll043.
