Solid-state amplifiers for electromagnetic compatibility (EMC) test and measurement offered by Saelig
FAIRPORT, N.Y. – Electronics distributor Saelig Co. Inc. in Fairport, N.Y. is offering the DAx and DBx solid-state amplifiers from Elite RF LLC in Hanover Park Ill., for generating the high electromagnetic fields for immunity and compatibility compliance testing.
Elite RF's series of broadband RF amplifiers and modules are geared for use in electromagnetic compatibility (EMC) testing, and are available in power levels from 20 to 2000 Watts.
These solid-state amplifiers are biased class AB and feature built-in temperature and current protection. They cover spectrum ranges of 9 kHz to 100 MHz; 9 kHz to 400 MHz; 20 MHz to 1000 MHz; 80 MHz to 1000 MHz; 500 MHz to 6 GHz; 1 GHz to 6G Hz; 2 GHz to 18 GHz; 18 GHz to 26.5 GHz; 26.5 GHz to 40 GHz and others.

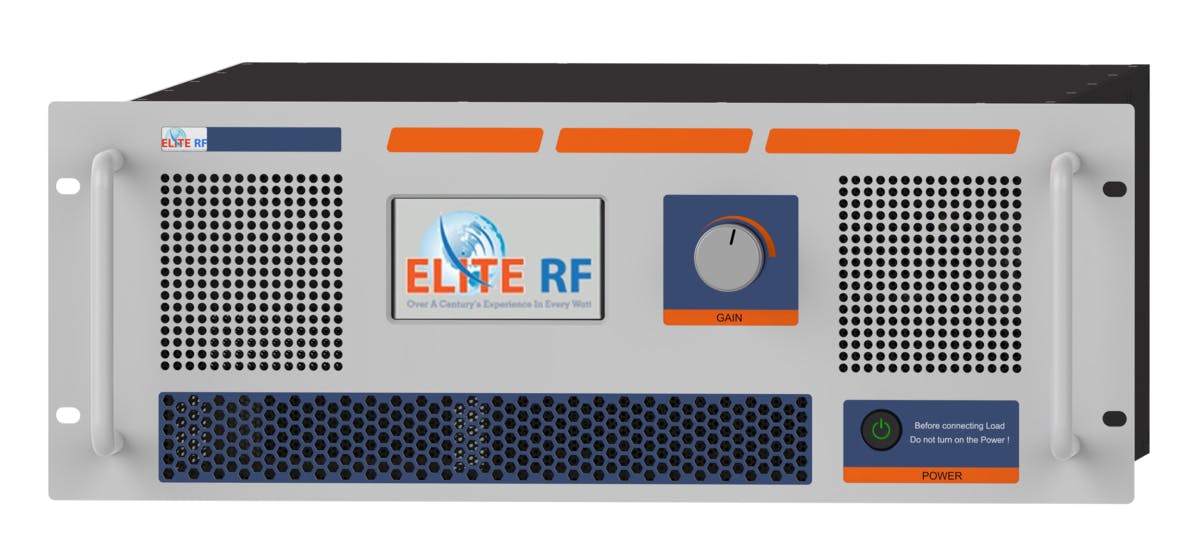

Elite RF systems and modules to 5 kilowatts to 1 kilowatts also are available. The DAx and DBx amplifiers are housed in metal 2U through 16U rack-mount cases.
Amplifiers play a pivotal role in EMC test and measurement, particularly in radiated immunity tests, where they are used to create high enough field strengths which are required to properly evaluate a device's resilience to electromagnetic interference.
Amplifier class is defined by how the amplifier output stages influence the output signal over a full cycle of a sinusoidal input. Class AB Amplifiers are a hybrid class where both output amplifiers conduct around the waveform's crossover point, eliminating crossover distortion. They are more efficient than class A and more linear than class B.
For more information contact Saelig online at www.saelig.com, or Elite RF at https://eliterfllc.com.
