SOSA-aligned single-board computer for aerospace and defense embedded computing introduced by Acromag

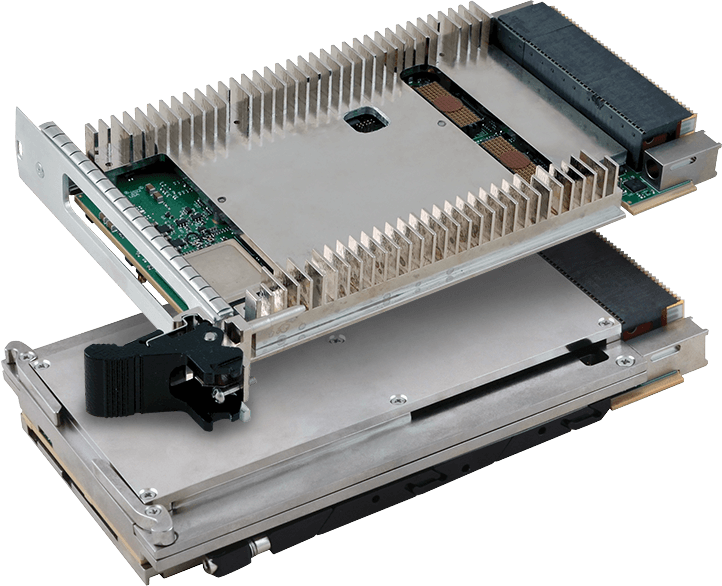

WIXOM, Mich. – Acromag Inc. in Wixom, Mich., is introducing the VPX7600 single-board computer for defense, aerospace, and scientific applications. This 3U OpenVPX computer board has the Intel 11th Generation Tiger Lake-H Xeon W-11000E processor and aligns to the SOSA I/O intensive profile.
An XMC mezzanine site and I/O peripherals offer great flexibility. Intel’s E810 Ethernet controller supports 100 Gigabit Ethernet on the data plane and 10 Gigabit Ethernet on the control plane.
NVMe data storage
An NVMe solid-state drive provides as much as 1 terabyte of M.2 data storage, and backplane I/O includes 2.5 Gigabit Ethernet, DisplayPort, USB 3.2, SATA III, RS232/422, and GPIO. Conduction-cooled and air-cooled with front I/O versions are available.
The base embedded computing model employs Intel’s W-11865MRE 8-core central processor connected to 32 gigabytes of dual-channel DDR4 ECC SDRAM and a 64-gigabyte NVMe M.2 BGA solid-state drive.
A PCI Express Gen 4 x8 interface to the Intel E810 100 Gigabit Ethernet controller ports 100GBASE-KR4 on the data plane and 10GBASE-KR on the control plane to P1. P2 connects a 2.5GBASE-T/1GBASE-T Ethernet port with TSN support.
A DisplayPort 1.4 interface supports 4K video resolution, with HBR3 data rates on the backplane. The XMC site host interface provides eight lanes of Gen4 PCI Express to P15 and P16 rear I/O or front I/O access on the air-cooled version.
SOSA-aligned
A field-programmable gate array (FPGA) implements a Crossfield Technology HOST 3.0 / VITA 46.11 Tier 3 / IPMI 1.5 Compliant IPMC. Board support packages are available for Windows, Linux, and VxWorks.
For more information contact Acromag online at www.acromag.com.
