MINV-4000-270

Feb. 16, 2023

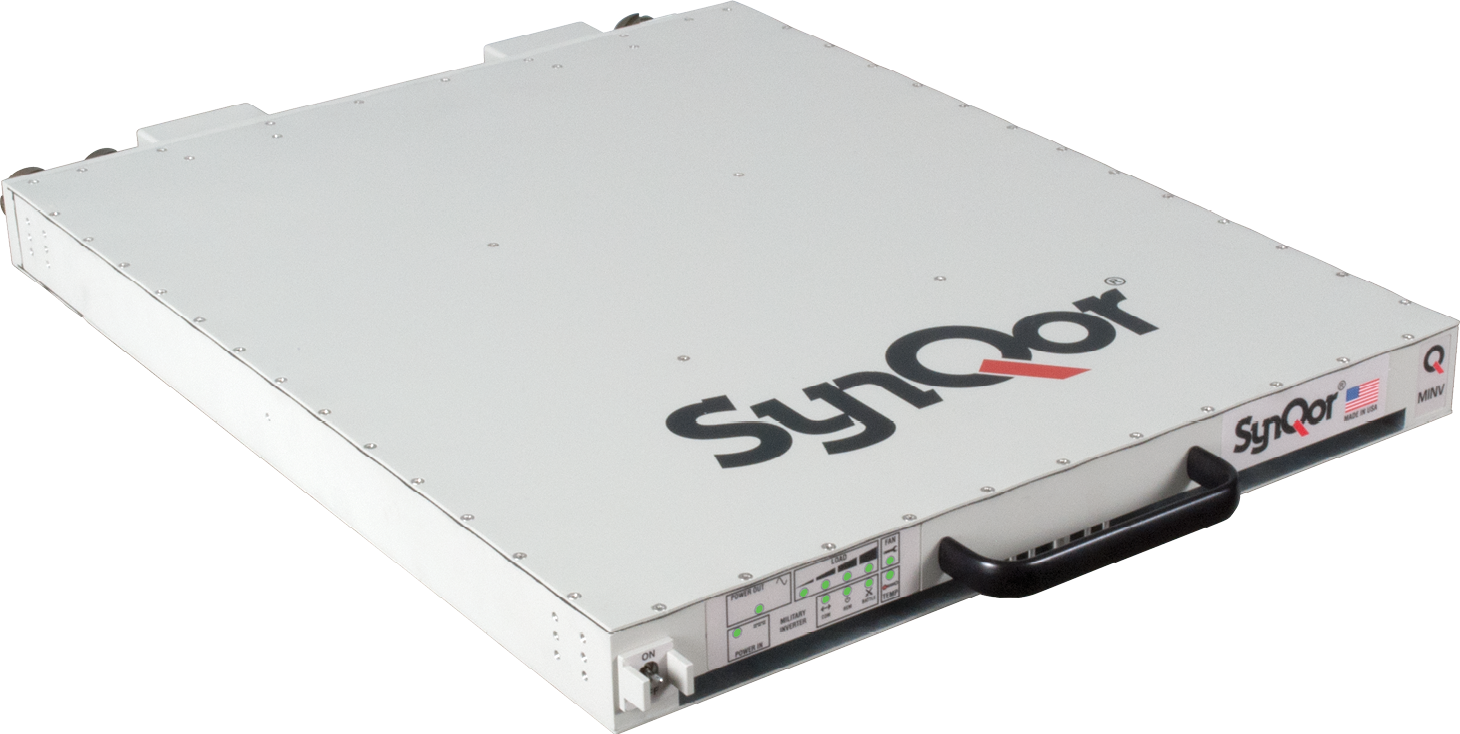

SynQor’s Military Field-Grade Inverter units are designed for the extreme environmental and demanding electrical conditions of Military/Aerospace applications.

SynQor’s Military Field-Grade Inverter units are designed for the extreme environmental and demanding electrical conditions of Military/Aerospace applications. SynQor’s MINV incorporates field proven high efficiency designs and rugged packaging technologies. The MINV will accept a 270 Vdc source as defined by MIL-STD-704 and changes it to a well-conditioned Single-Phase AC output using a two-stage DC link isolated topology. It is designed to comply with a wide range of military standards in addition to MIL-STD-704. Options include a selection of output voltage amplitudes, frequencies and an electronic breaker on the AC output to permit fault-tolerant parallel operation for higher power and/or N+M redundant systems.

Features

• Sealed, weather-proof, shock-proof construction

• Two-stage, DC link isolated topology

• 4000 W (5000 VA) output power; 10 s transient to 5250 W (6500 VA)

• Full power operation: -40 °C to +55 °C

• 160 - 330 Vdc Input voltage as defined by MIL-STD-704

• Reverse Polarity Protected to -650 Vdc

• Pure sinusoidal AC output voltage

• Handles 0.0—1.0 power factor loads and non-linear loads

• Up to 32 units can be combined for higher power, higher voltage, or a 3-Phase AC output

• Capable of N+M redundancy with optional “AC Output Electronic Breaker” (R option) and the appropriate configuration cable

• User I/O and Configuration signal ports

• Battle Mode for over-temperature events

• 1U high rack mount unit (17.00”W x 22.42”D x 1.73”H)

• Low weight: 33 lbs.

Specification Compliance

MINV 270 units are designed to meet:

• MIL-STD-704 - Aircraft Electric Power Characteristics

• MIL-STD-810G - Environmental Engineering Considerations

• MIL-STD-461F - Electromagnetic Interface

In-Line Manufacturing Process

• AS9100 and ISO 9001 certified facility

• Full component traceability

Options

• 115 Vrms or 230 Vrms AC output

• 50 Hz, 60 Hz, or 400 Hz AC output (software selectable)

• Shipboard version with floating output neutral wire

• N+1 Redundancy
