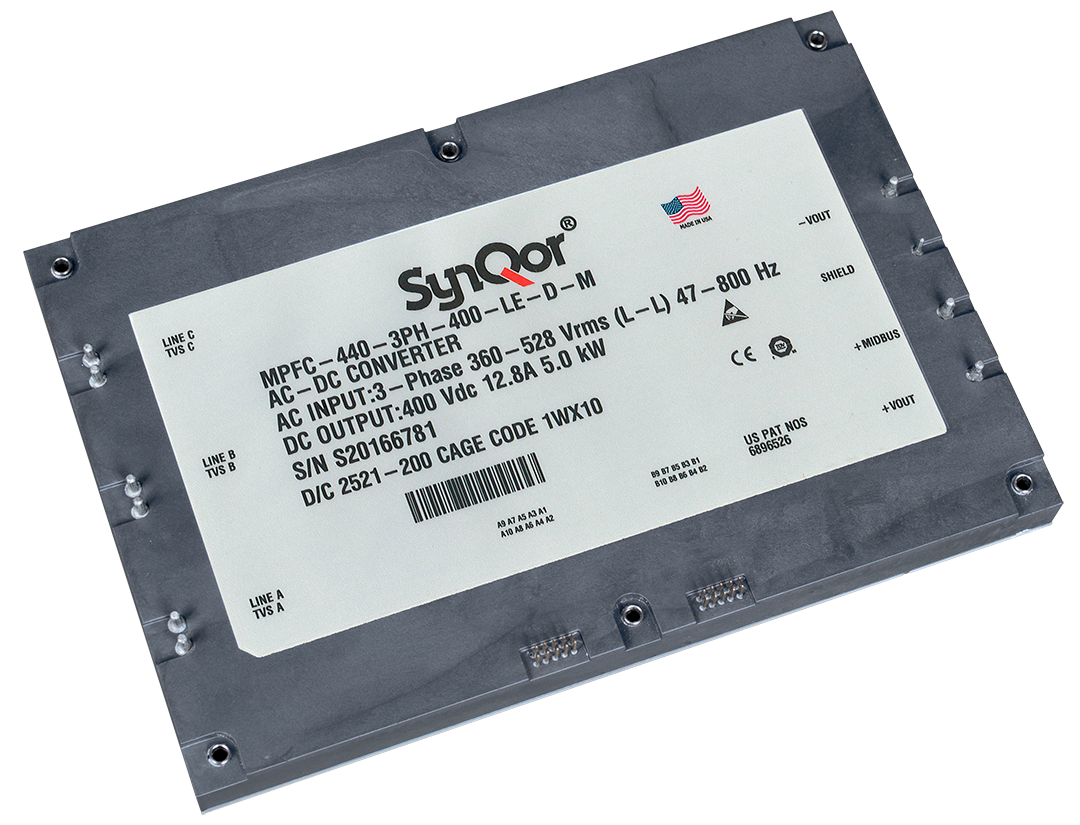

The MilCOTS 440 Vrms 3-Phase MPFCQor Power Factor Correction module is an essential building block of an AC-DC power supply. Used in conjunction with one of SynQor’s matched 3-Phase AC line filters and a limited amount of stabilizing capacitance, this MPFCQor will draw well-balanced and low-distortion sinusoidal currents from each phase of a 3-Phase AC input. It is designed to comply with a wide range of military standards and is manufactured in the United States.
Operational Features
• Large-module form factor
• 5.0 kW continuous rating at 80 °C baseplate temperature
• Semi-regulated output: 400 Vdc
• Compatible with Military Standard 60 Hz, 400 Hz & var. freq. systems
• Meets military standards for harmonic content
• Drives pulsed output loads without passing transients back to the input (requires adequate capacitance; see pulsed loads section)
• Minimal inrush current
• Balanced phase currents
• High power factor (0.999 at 60 Hz / 5.0 kW)
• Minimal external output capacitance needed
• Supports full load current during startup ramp
• Additional input filters available to meet full EMI
• N * 5.0 kW power levels when paralleled
Compliance Features
3-Phase PFCQor series converters are designed to meet: (With an MCOTS 3-Phase AC input filter)
• MIL-STD-461 (C, D, E, F)
• MIL-STD-1399 (at 440 Vrms L-L)
• MIL-STD-810G
Mechanical Features
• Size: 7.320” x 4.920” x 0.602” (186 x 125 x 15.3 mm)
• Weight: 36 oz (1020 g)
Control Features
• All control pins referenced to separate floating return
• Asynchronous serial data interface
• AC and DC Power Good outputs
• PFC Enable and Battle Short inputs
• 3.3 V always-on standby power output
• Clock synchronization output
Protection Features
• Output current limit and auto-recovery short circuit protection
• Auto-recovery input under/over-voltage protection
• Auto-recovery output over-voltage protection
• Auto-recovery thermal shutdown
