6U VPX power supply for 6U OpenVPX conduction-cooled embedded computing chassis introduced by Vicor

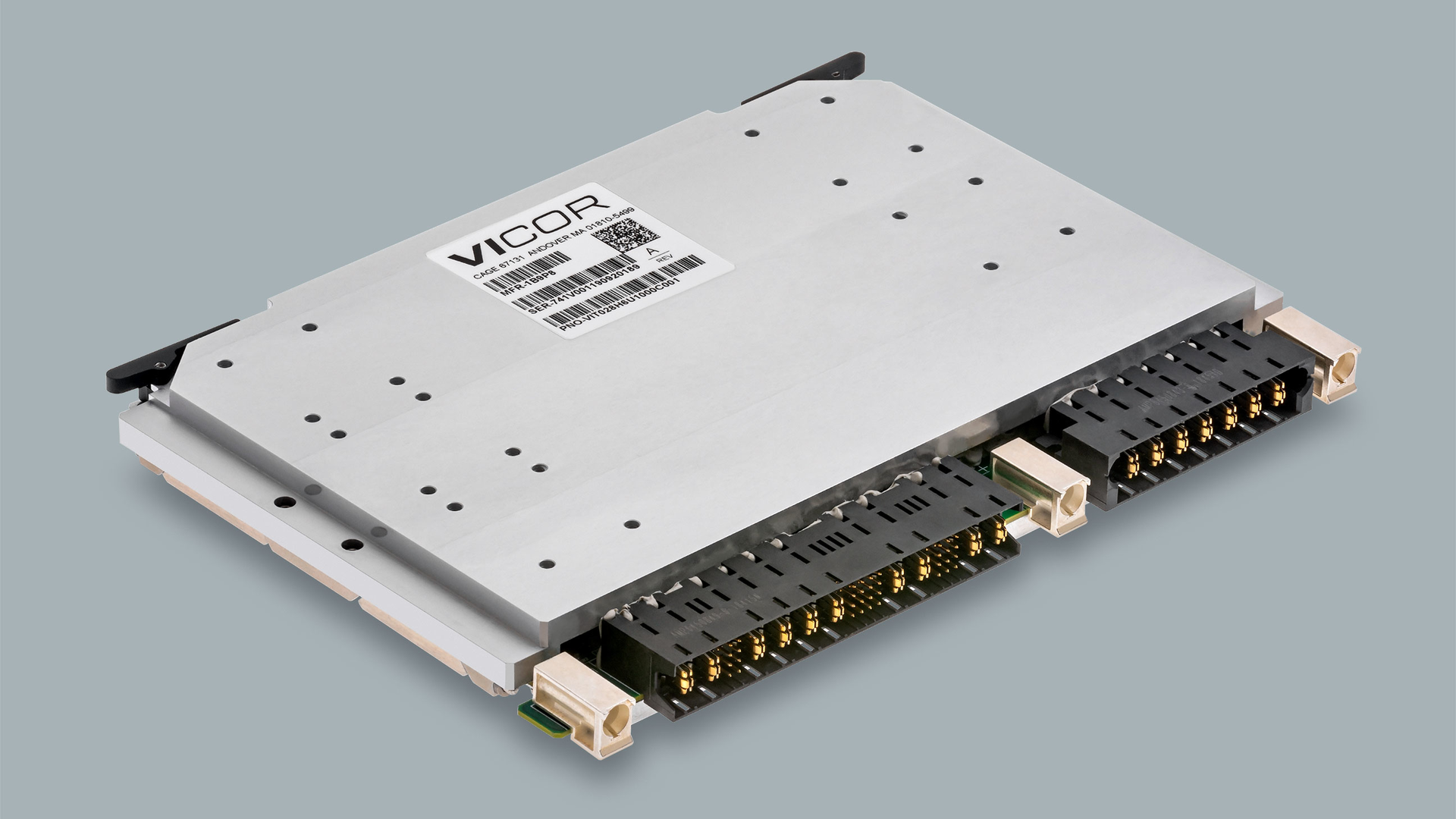

ANDOVER, Mass. – Power electronics specialist Vicor Corp. in Andover, Mass., is introducing the model VIT028 6U VITA 62-compliant power supply for 6U OpenVPX conduction-cooled embedded computing chassis systems.
The product operates from a nominal 28-volt input with predefined output voltages ranging from 3.3 to 12 volts and delivering as much as 1000 Watts of power.
The 6U supply meets MIL-461F, MIL-704F, and MIL-1275E standards. Systems designers who need different output voltages or power levels can request a customized power supply to meet their own specifications.
The model VIT028 6U takes an 18-to-42-volt input, and offers output voltages of 12-, 5-, 3.3-, and -12-volt outputs, with a maximum combined output of 1,000 Watts. The 6U VPX power supply measures 6.6 by 9.2 by 0.9 inches.
Related: Article headline goes here
Vicor also offers the model VIT270 3U, and model VIT028 3U VITA 62-compliant power supplies for 3U VPX applications.
The model VIT270 3U takes an 220-to-320-volt input, and offers output voltages of 12-, 5-, 3.3-, and -12-volt outputs, with a maximum combined output of 600 Watts. It measures 6.6 by 3.9 by 0.9 inches.
The model VIT028 3U takes an 18-to-42-volt input, and offers output voltages of 12-, 5-, 3.3-, and -12-volt outputs, with a maximum combined output of 1,000 Watts. It measures 6.6 by 9.2 by 0.9 inches.
Vicor developed these VPX power suppliers using the company's high-density and high-efficiency Converter housed in Package (ChiP) technology. For more information contact Vicor online at www.vicorpower.com.
