Fixed attenuator with SMA female connectors for radar, defense, and aerospace uses introduced by BroadWave

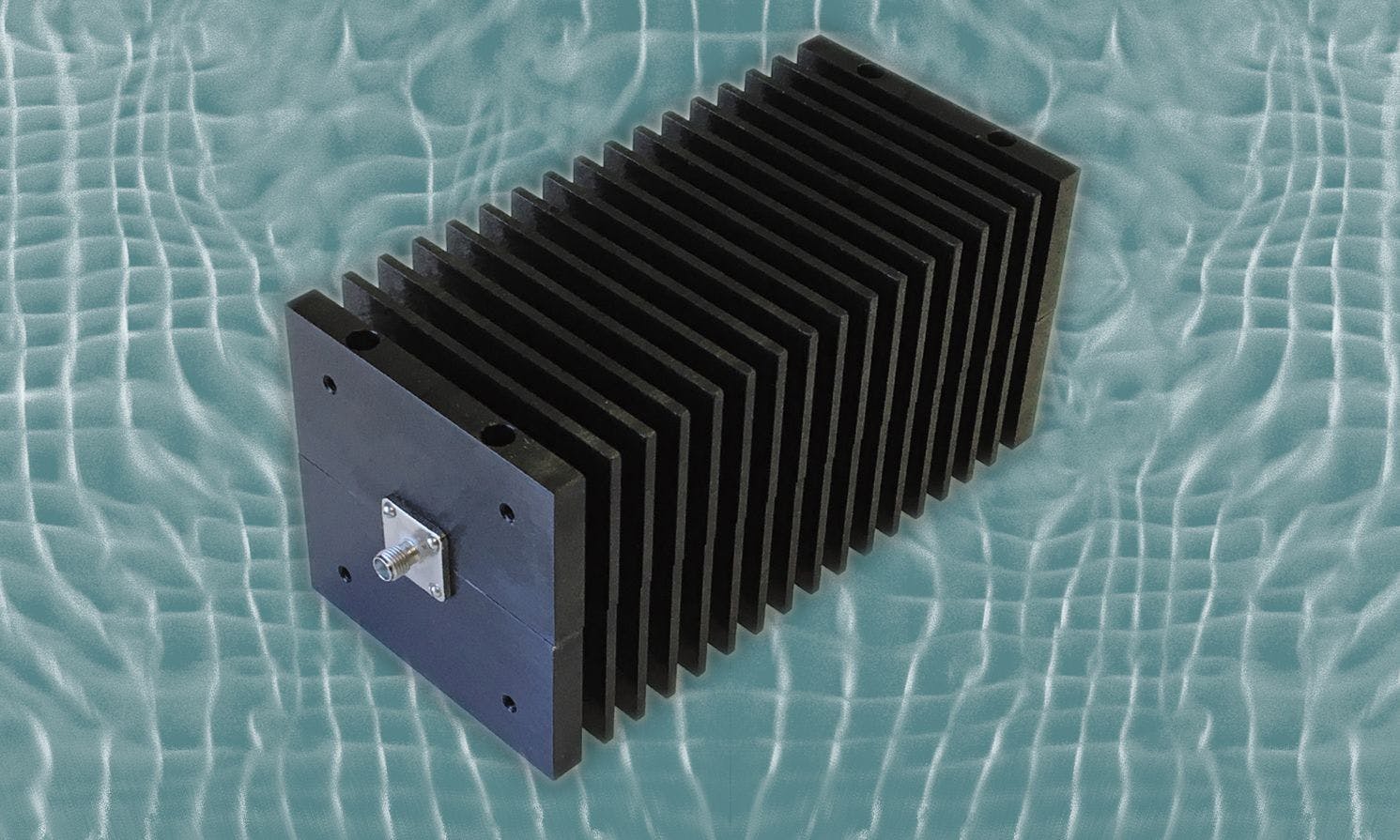

GREENWOOD, Ind. – BroadWave Technologies Inc. in Greenwood, Ind., is introducing the model series 351-358-XXX 100-Watt fixed attenuator for radar, base stations, test and measurement equipment, telecommunication systems, wireless applications, and aerospace and defense programs.
The device is designed to reduce the amount of power delivered in a transmission line without introducing much noise or distortion.
The model series 351-358-XXX is a 50 Ohm fixed attenuator with an operating frequency range of DC to 500 MHz. Standard attenuation values are 2, 3, 6, 10, 20, 30 and 40 decibels.
Maximum voltage standing wave ratio (VSWR) is 1.20:1, the temperature range is -55 to 70 degrees Celsius and the RF connectors are SMA female.
Other RF connector types and genders are available in this package. For more information contact BroadWave Technologies online at www.broadwavetechnologies.com.
