Dawn VME Products

Fremont, CA 94539

COMPANY OVERVIEW

About Dawn VME Products

Founded in 1985, Dawn is the industry leader in the design and manufacture of mission critical products based on the VITA™ and PICMG® architectures. Military Rugged. Field Reliable. Deployment Ready.
46

Product Summary

Dawn’s product line features VPX power supplies, high-performance backplanes and powered enclosures in addition to SOSA-aligned products and multi-function accessories.

Contact

47915 Westinghouse Dr
Fremont, CA 94539
United States of America
http://www.dawnvme.com
510-657-4444
800-258-3296
510-657-3274

More Info on Dawn VME Products

Dawn Logo Revised 626ff4ce0671e

Dawn VME Products is a premier privately-held manufacturer of high performance embedded components, modules and packaging systems. Founded in 1985, Dawn is the industry leader in the design and manufacture of products based on the VITATM and PICMG® architectures.

Dawn’s headquarters is a state-of-the-art, 42,000 square foot facility located in Fremont, California, in the heart of the Silicon Valley. Dawn’s product line features VPX power supplies, high-performance backplanes and powered enclosures in addition to SOSA-aligned products and multi-function accessories.

Dawn's engineering and manufacturing capabilities allow the company to offer both standard and custom products into the commercial, military, medical, telecom, and research markets.

Dawn VME Products recognizes that the success of any technical product is the foundation from which it is engineered. Dawn's Engineering Team possesses over hundreds of years of combined experience and utilizes the most current design techniques in the creation of our products. Dawn invests heavily in R & D, the results of which are a continuous stream of new and improved products.

Manufacturing excellence is also what separates Dawn from its competitors. As a founding member of VITATM, Dawn has the experience necessary to create consistent production assemblies in support of our clientele. Dawn's manufacturing team is comprised of highly-skilled assemblers, technicians, engineers and other professionals dedicated to maximizing customer satisfaction through on-time delivery of zero-defect products.

Dawn has dedicated custom program managers (CPM) whose objectives are to ensure that pre-sales RFQ and post sales documentation for all non-standard or custom products are complete and accurate. These CPMs act as a single point of contact for all customer product and program issues. They also coordinate all internal program related efforts, relay changes and upgrades to the design team, discuss possible improvements to the design with our customers, and rally the required resources for the completion of custom product applications.

Dawn provides customers an in-depth and broad range of system and product knowledge and expertise coupled with the latest tools in design and manufacture to enable fast turn-around, competitively priced, quality design, manufacturing and support of a wide range of custom requirements.

We can modify our existing platforms, or incorporate your requirements into a customized solution for prototyping and development. We are dedicated to maximizing customer satisfaction through on-time delivery of zero-defect products.

Dawn engineering supports a wide range of custom requirements, and modifies its products to meet specific military/aerospace, telecommunication, medical, industrial and commercial applications.

Contact Dawn VME Products for consultation to enable military rugged, mission critical and high performance computing systems.

(800) 258-DAWN (3296)

(510) 657-4444

[email protected]

Rugged, reliable and ready.

You need it right. You want Dawn.

Products

Image courtesy of Dawn VME Products
Fabric Mapping Modules
Dawn’s patented connector-less micro-overlays simplify and automate topology customization to quickly optimize off-the-shelf OpenVPX backplanes.
Image provided by Dawn VME Products
3U CC VPX Extender
3U Conduction Cooled VPX Extender. The Dawn IEB (Intelligent Extender Board) has features not normally found in conventional implementations.
Image provided by Dawn VME Products
SIR-6500 Dawn VME Products
17U height of 19 inch EIA-310 rack space. Payloads to 250 lbs. Provides mains power entry, cooling, generous I/O panel space.
Provided by Dawn VME Products
PSC-6234cc
VITA 62 compliant 3U power supply for conduction cooled OpenVPX systems. Embedded RuSH technology. Load sharing circuitry for up to 4 modules.
Image provided by Dawn VME Products
VPX-5908
3U OpenVPX Development Backplane. 1.0 Inch Pitch, 8-Slot Fabric Mappable. Daisy Chain Fabric on VPX J1 Rows 1-8.
Image provided by Dawn VME Products

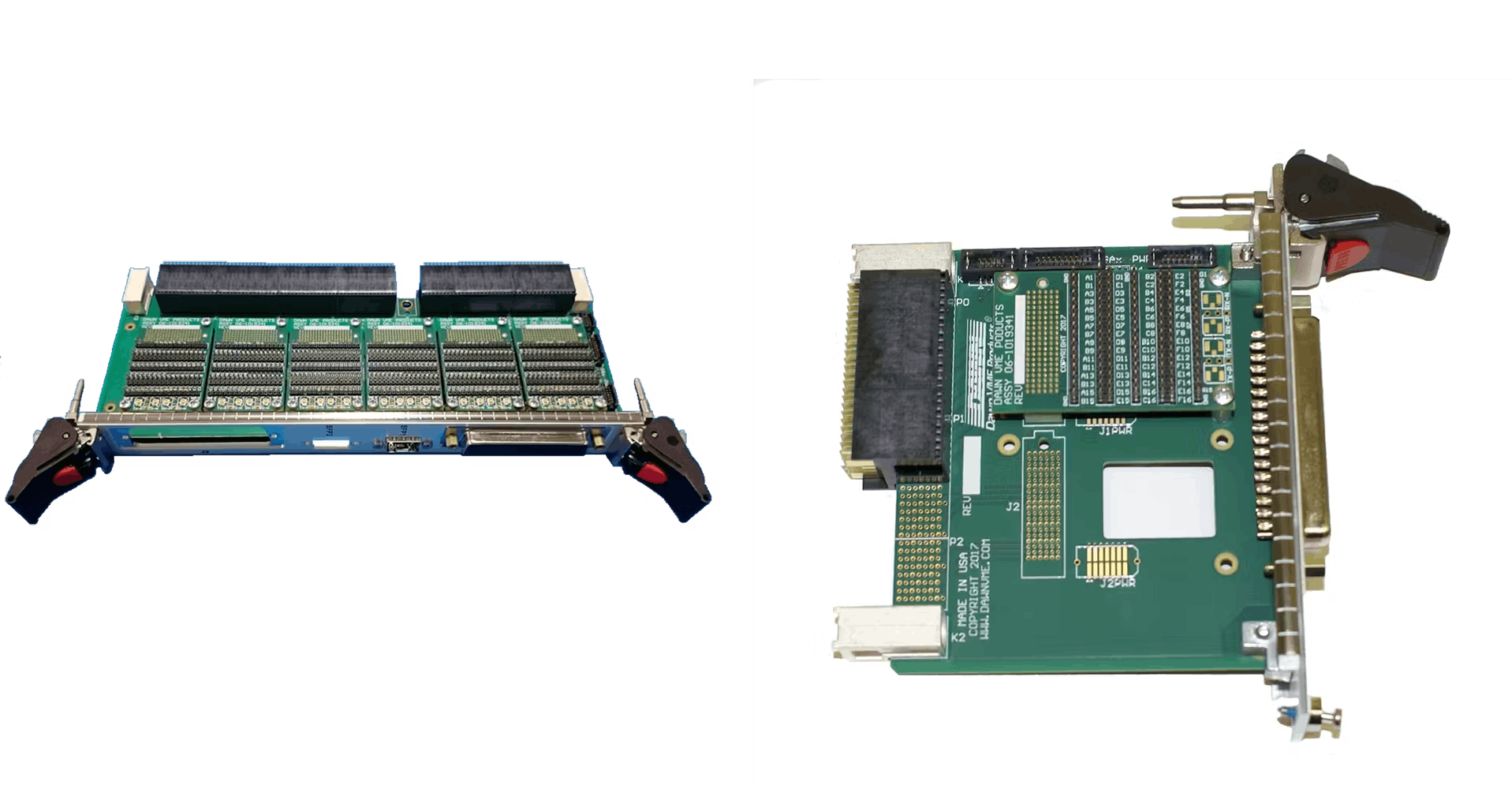

RTM-9265 & 9380
Universal 6U or 3U VPX Rear Transition Module. Can be customized by Dawn.
Image provided by Dawn VME Products

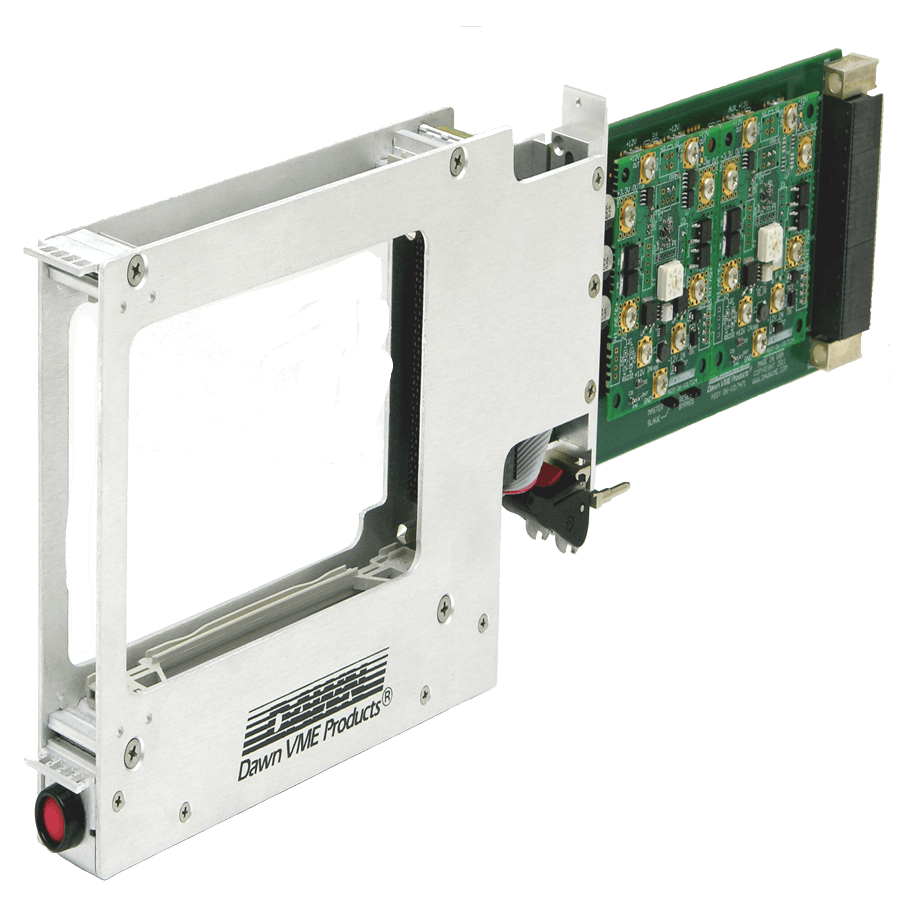

EXB7471
Monitors Voltage and Current. Remote status LCD display. Remote cooling fan option. Short circuit protected.
Image provided by Dawn VME Products
PSC6265
Universal AC input VITA 62 compliant 6U power supply. Run up to three supplies in parallel. Wide temperature range at high power levels.
Image provided by Dawn VME Products
Backplane Topology Customization
Our designer-friendly and flexible technology can solve many of your application problems in the design phase.
Image provided by Dawn VMW Products

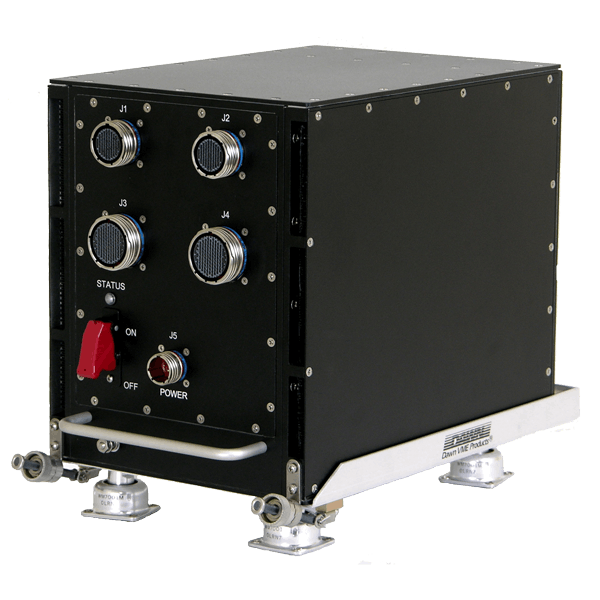

ATR-5700
MIL-STD-810E, DO-160E, MIL-STD-461E Air Transport Rack. Rugged air-cooled 6-slot 3U VPX. Integral 6-channel intelligent 600-watt power supply.

Articles

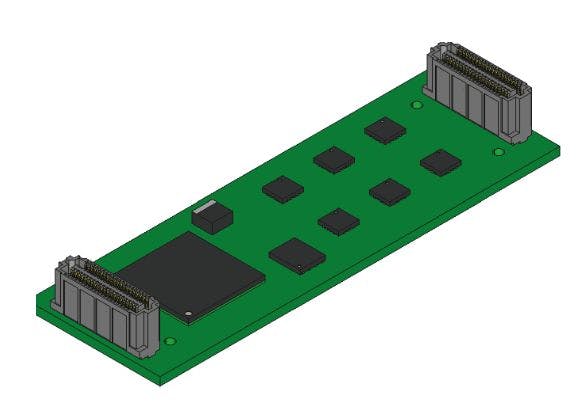

The emerging VITA 93 QMC open-systems standard aims at high-performance I/O for small-form-factor embedded computing.
VITA 93 QMC open-systems I/O standard may see applications as replacements for 1553, CAN bus, and ARINC 429 for military and commercial aviation uses.

KEY CONTACTS

Barry Burnsides

CEO

Buyer’s Guide Listing Information

Click here for listing information and directions on how to add or update your company.

Request More Information From Dawn VME Products

By clicking above, I agree to Endeavor Business Media's Terms of Service and consent to receive promotional communications from Endeavor, its affiliates, and partners per its Privacy Notice. I also understand my personal information will be shared with the sponsor of this content, who may contact me about their offerings per their privacy policy. I can unsubscribe anytime.

Additional content from Dawn VME Products

Provided by Dawn VME Products
6U VME Monolithic
2 through 21 slots, short-tail 96-pin DIN connectors standard on J1 slots, shrouds on all J2 connectors, 8 layer stripline/microstrip design.
Provided by Dawn VME Products
ITM 6973
3U version Dawn Intelligent VPX Test Module, also system monitor and load board. Feature packed. 6U version available. 6U SOSA version available.
Image provided by Dawn VME Products
RuSH Monitors
Enclosure multi-functional remote monitoring and control system. Ethernet and RS-232 enabled models. Accurate, self-calibrating. Military-tested.
Image provided by Dawn VME Products
PSD-6362
3U VITA 62 compliant 500 watt 6 channel plug-in VPX power supply docking board/backplane. Designed for quick addition of power to VPX platforms.
Image provided by Dawn VME Products
Rugged Card Cage
Dawn’s patented DuroCage extruded-aluminum rail system available in 3U, 6U and 9U standard card cage configurations. Designed to meet MIL-STD 901D.
Image provided by Dawn VME Products

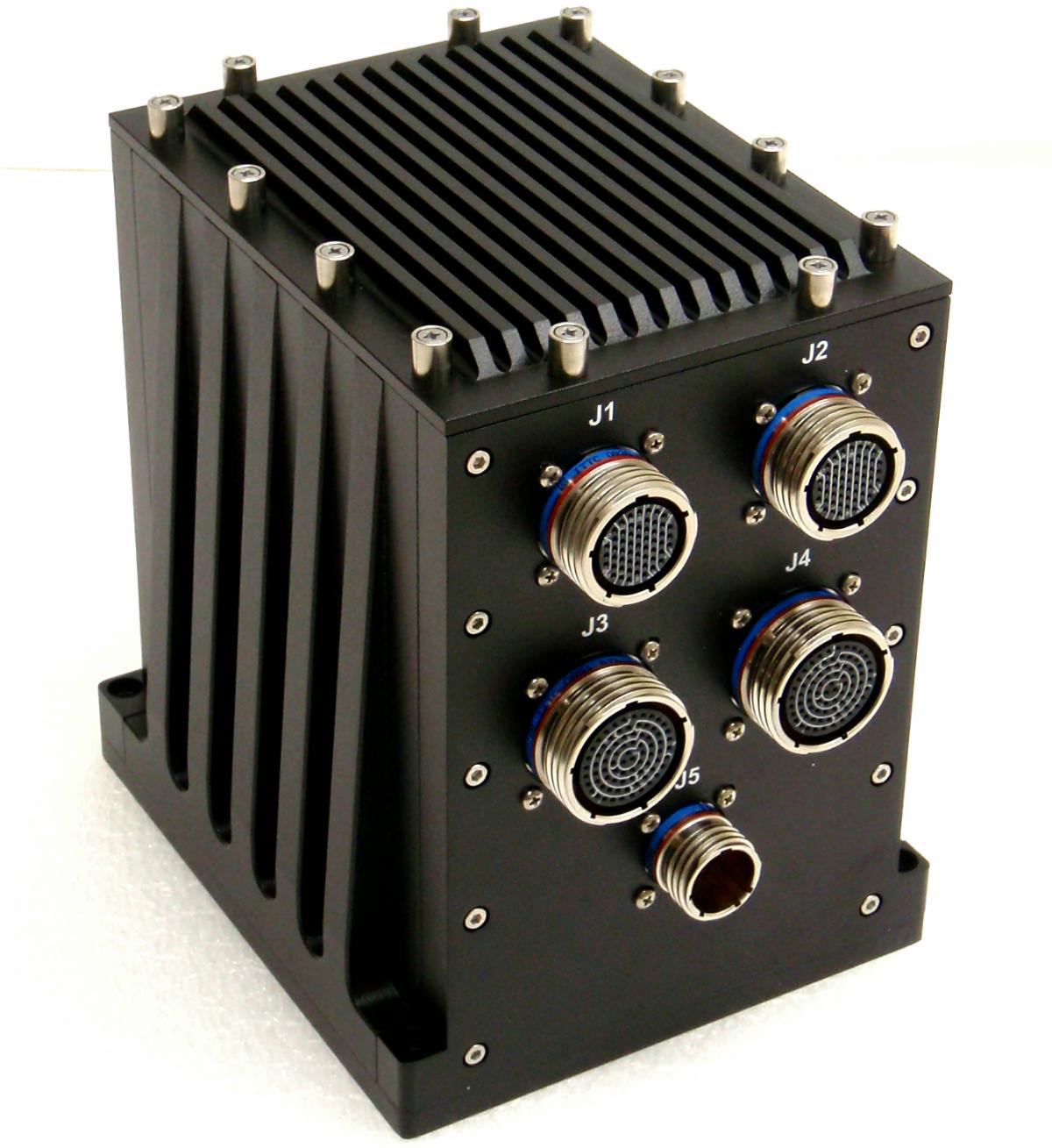

VPX Cube Enclosures
1 to 6 Slot. MIL-STD-810E, DO-160E and MIL-STD-461E. Full environmental sealing for all rugged environments. Up to 400 Watts of 6-channel power.
Provided by Dawn VME
Dawn VME Custom Rear Transition Modules
Dawn custom RTMs can be designed to meet specific requirements, including form factor, I/O interfaces, and signal levels.
Image provided by Dawn VMW Products
DEV-4200
To 8-Slots of OpenVPX on 1″ pitch with or without RTM connectors. Available with any backplane topology. Choice of 12H, 5VH or VEN Power Systems.
Courtesy of Dawn VME Products
itm6976
SOSA version 6U Dawn Intelligent VPX Test Module, also system monitor and load board. Feature packed. 3U version available. 6U version available.
Image provided by Dawn VME Products

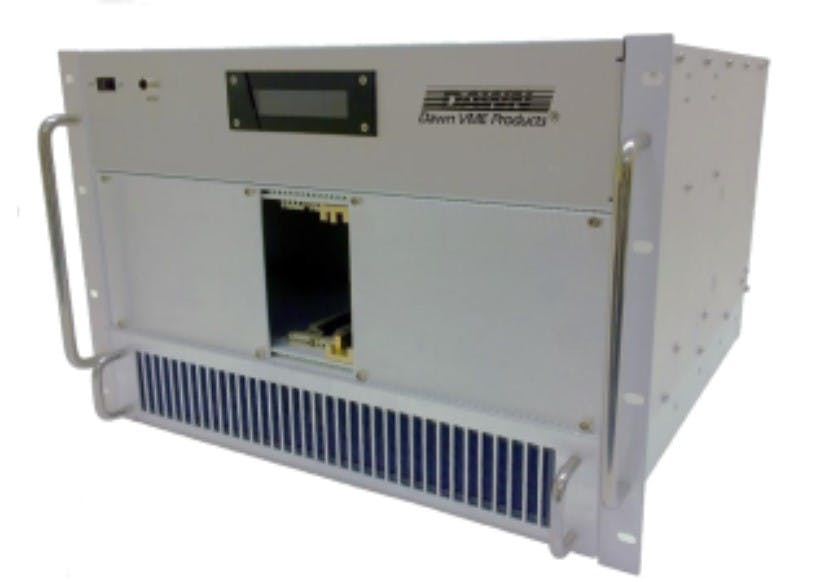

RME-6430 3U VPX 2-16 slots 7U Powered Enclosure
Robust 19” 3U VPX Rack Mount Enclosure. Featuring 2-16 VPX slots at 1” pitch backplane with extreme power and cooling. Embedded RuSH™ technology.

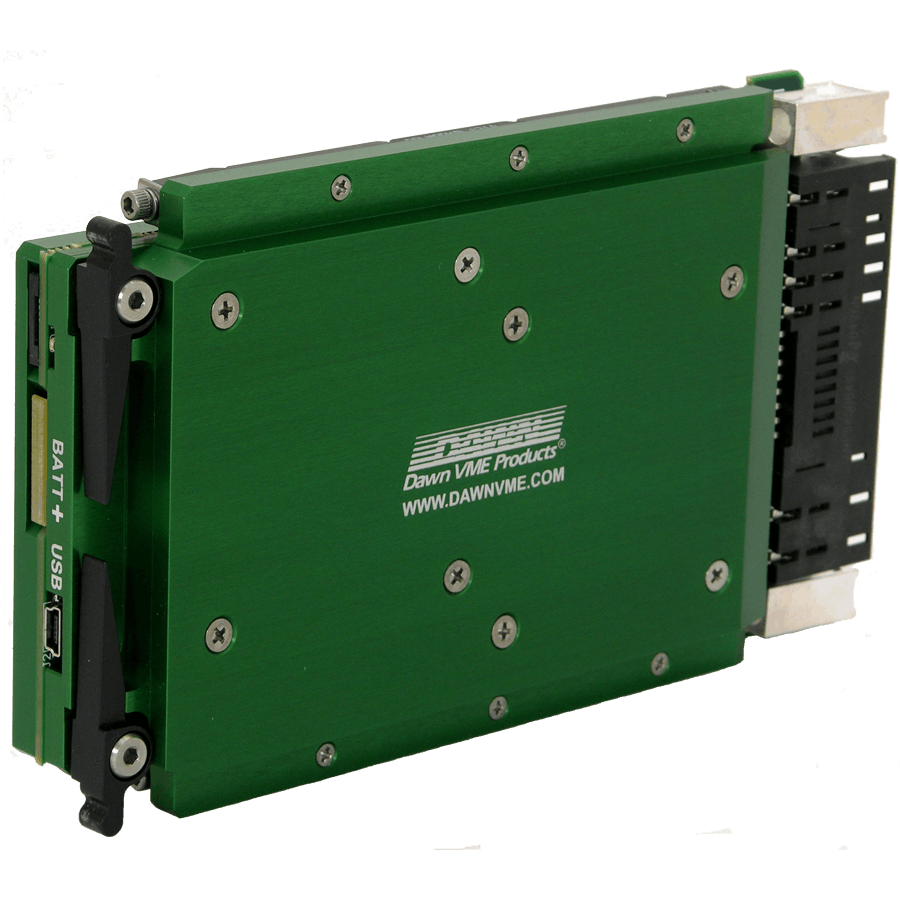

3U VITA 62 20W to 190W low power, high efficiency 28V DC/DC power supply with MIL-STD-704 Hold-up of 50 msec integrated for 135W load.
Image provided by Dawn VME Products
CCG-6860
Revolutionary design for Dawn DC-(n) Series air cooled development chassis allows for up to 175 watts per slot of conduction cooling.
Image Provided by Dawn VME
Meritec VPX Plus
The VPX Plus line of Innovative Interconnect Solutions from Meritec adds topology mapping and I/O through cables attached to RTM connectors.
Image Courtesy of Dawn VME Products
Dawn VME RuSH Sidekick RH
Dawn RuSH System Health Monitor add-on to log Relative Humidity over any desired period, accuracy of +/- 2.5% RH over 5-95% range. Military rugged.
Courtesy of Dawn VME Products
Rush Model 426 Wizard
Control fans, power supplies, LEDs, backplane signals or almost anything else imaginable. Can run off virtually any power source. Ethernet enabled.
Courtesy of Dawn VME Products

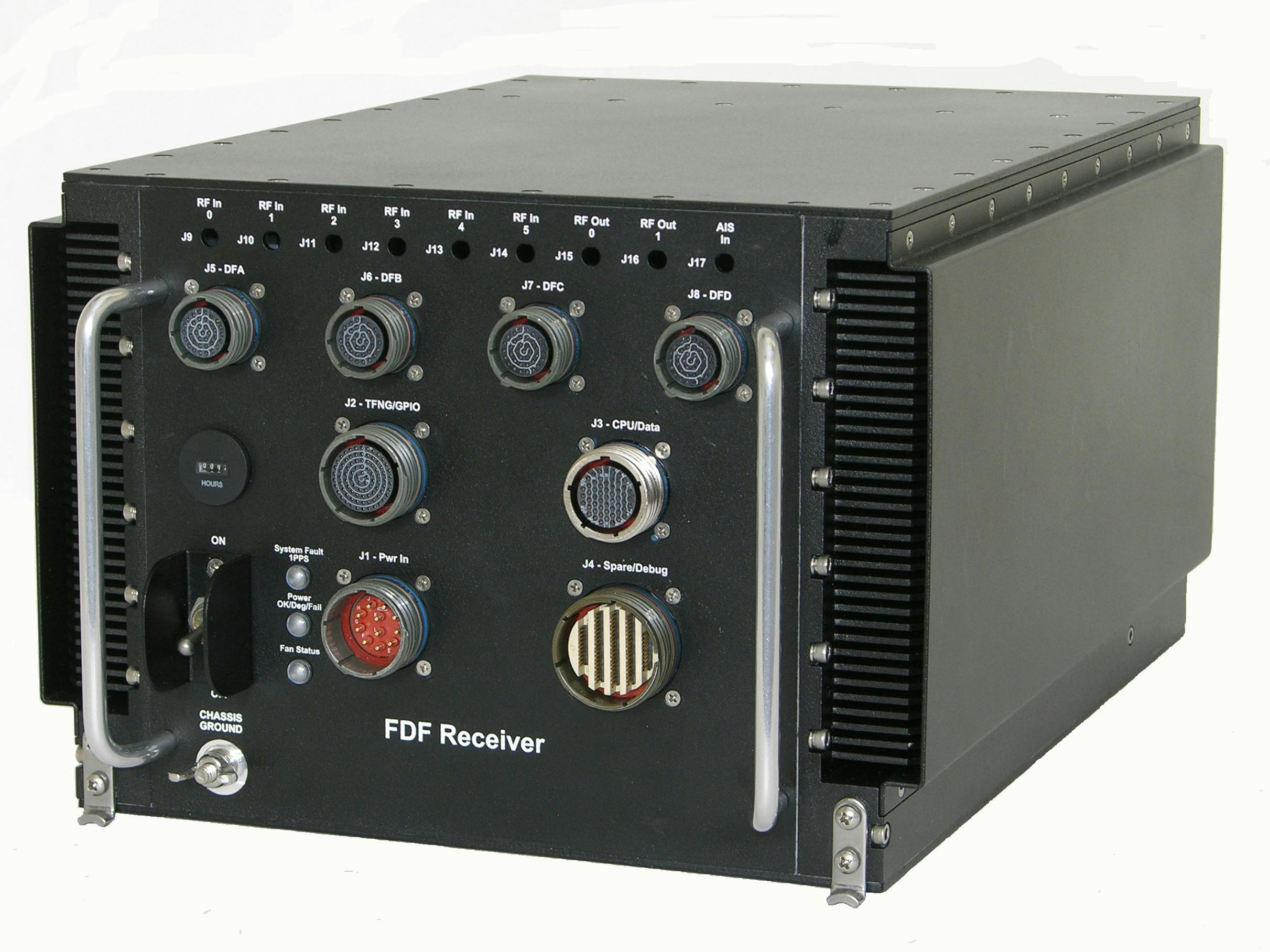

ATR-6800
MIL-STD-810 convection over conduction-cooled 6U 8-slot OpenVPX ATR Chassis. 1ATR ARINC 404A Tall/Long format or 1ATR ARINC 404A Short/Long.
Courtesy of Dawn VME Products
PSC-6236 3U 400W Universal AC Input Conduction Cooled
Dawn 3U VITA 62 compliant 6 channel plug-in or bulkhead mounted power supply for conduction cooled OpenVPX systems. Embedded RuSH™ technology.
Courtesy of Dawn VME Products
6U Intelligent VPX Test Extender Board
6U Intelligent VPX Test Extender Board monitors voltage and current. Remote LCD display shows status. Remote fan option for cooling.
Courtesy of Dawn VME Products
Single Slot OpenVPX Development Backplanes
3U and 6U in VITA 65, VITA 67.1, VITA 67.2, VITA 67.3, Nano-RF, SOSA-aligned and Power Supply slot profiles. Custom configurations available.
Courtesy of Dawn VME Products

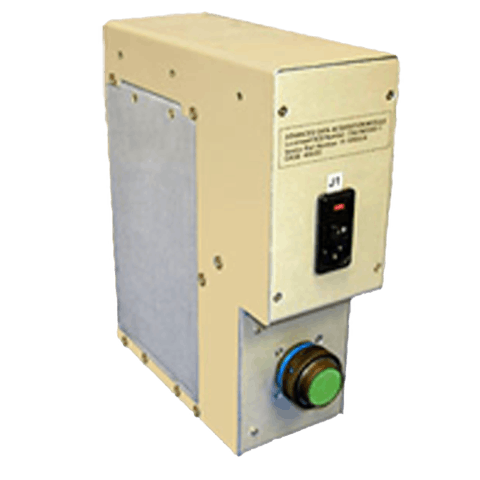

Modified COTS and full custom enclosure designs, standard or rugged, compliance tested. Customized solutions for prototyping and development.
Courtesy of Dawn VME Products
Micro RuSH I2C enclosure Temperature sensor with optional Voltage monitor and PWM fan control.
Courtesy of Dawn VME Products
Dawn Micro 6U VPX Rear Transition Module for J3-J6 Signal Breakout. 1G-BaseT Ethernet and slower signals.
Courtesy of Dawn VME Products
Dawn SOSA aligned expandable USB to RS-232 adapter. Each module converts 8 Serial ports to 1 USB2 port.
Courtesy of Dawn VME Products
Power Supply Docking Board/Backplane provides all necessary features and functionality required to add a 3U power backplane to a VPX system.
Courtesy of Dawn VME Products
Delivering true signal integrity at up to 10.3 Gbaud performance. Multiple connector choices, including a high vibration option.
Air Transport Rack 6 slot MicroTCA backplane, completely sealed inner housing, two-stage conduction cooled, cPCI and VPX backplane options.
Convert Backplane SERDES interfaces (KR/KX/SGMII/USXGMII) to 10G/1000/100 BASE-T for External Chassis interface.
PWR/GND/IPBM/Utility Plane. 12H, 5VH and VEN power profiles, daisy chained IPMB resident. Additional topologies available.
9U Overall Height Enclosure with 20 slot wide vertical 6UX160MM VME DuroCage rugged card cage and 2-18 slots monolithic VME backplane options.
SOSA compliant version Test Extender Card. Test your VPX 3U chassis VPX + VITA 67.3 Type C card slots using the Dawn VPX-3673 Test Extender Card.
6U Hybrid VME64x/VPX backplane provides a natural migratory development environment and path for upgrading systems to the latest VPX technology.
3U VITA 62 OpenVPX. Wide temperature range at high power levels. Extended shock and vibration compliant. Switchable Battleshort and NED functions.
BKP6-DIS06-11.2.10-n topology, 6 slots on 1″ pitch, 1 switch slot and 5 payload slots. For development and deployed environments.
Our designer friendly and flexible technology can solve many of your application problems in the design phase.

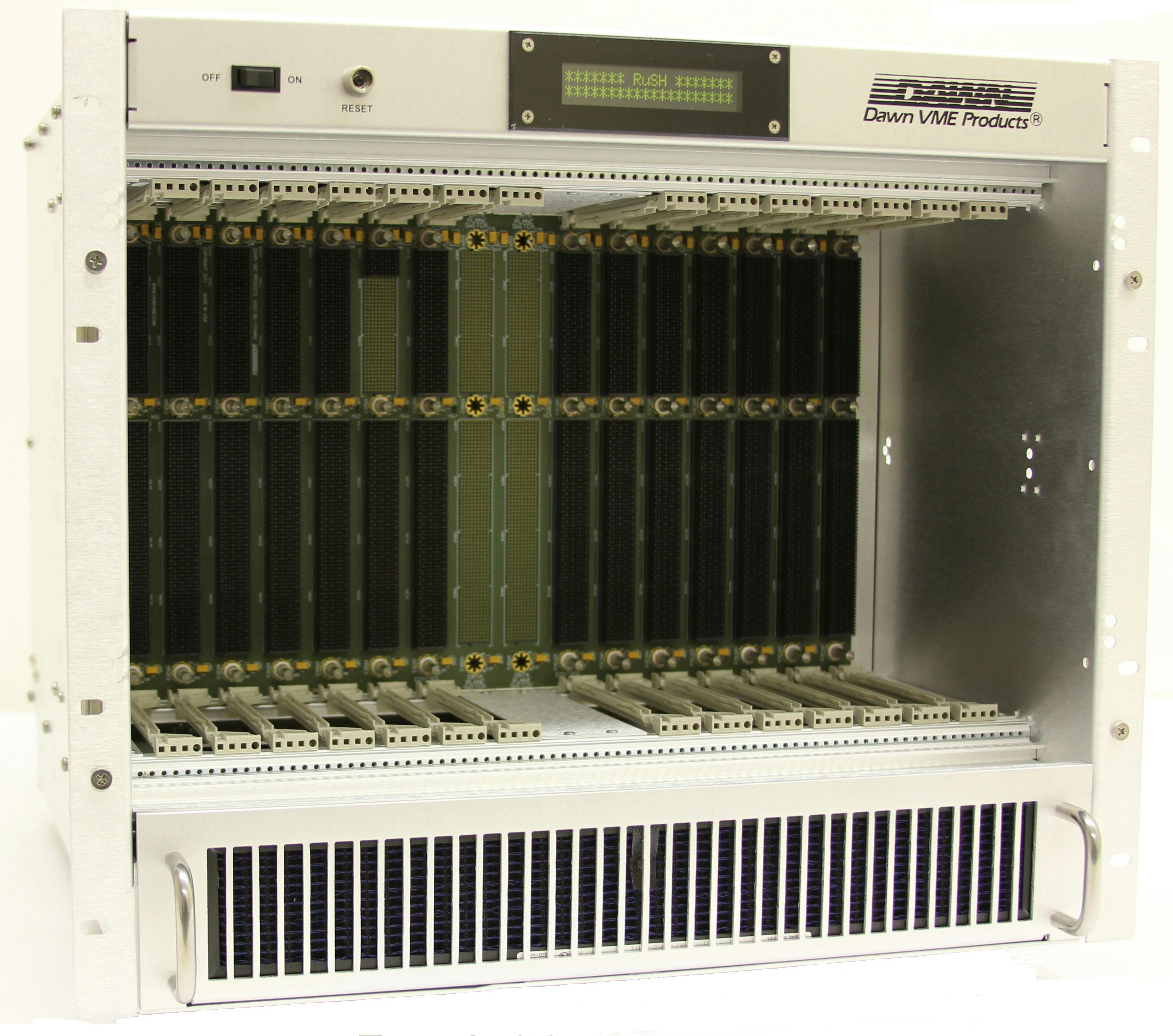

9U VPX 19″ rack mount enclosure for 6U VPX air or conduction cooled boards, 16 slots on 1 inch pitch, RuSH™ system health monitoring.

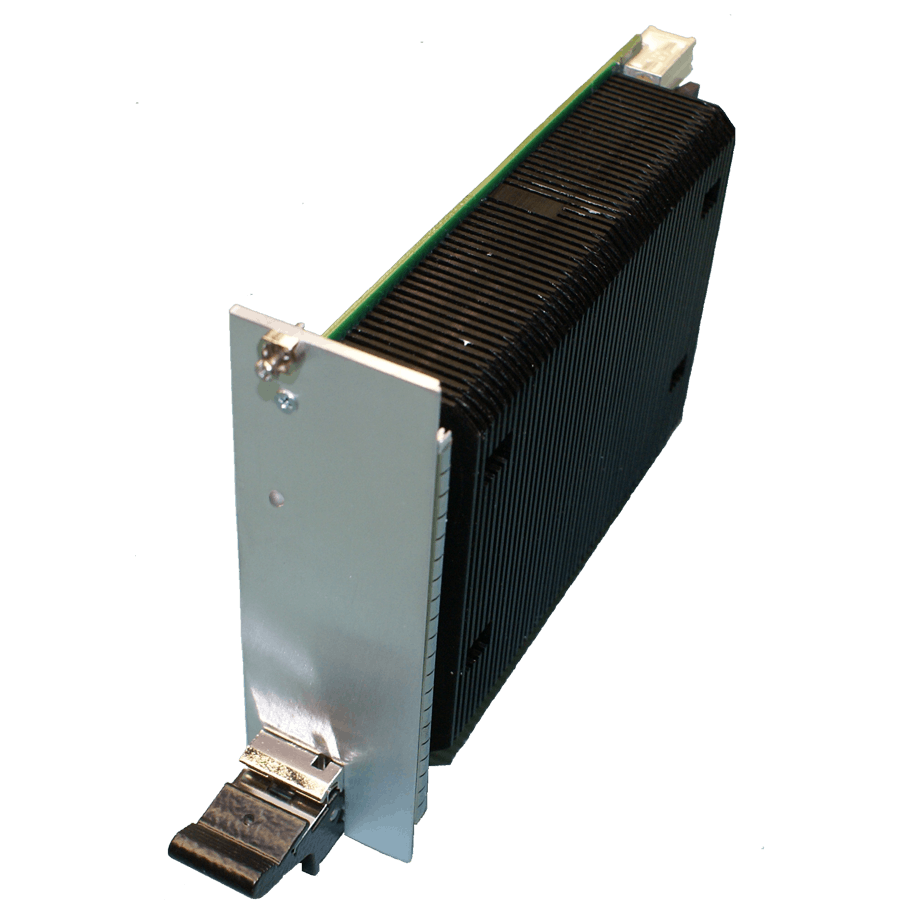

3U VITA 62 compliant 6 channel plug-in power supply for air cooled systems. Embedded RuSH™ technology. Current sharing with up to four modules.
